Product Description:
The RCF260WT tractor-mounted deep water well drilling rig, developed independently, features advanced hydro technology for low consumption, high rotary torque, and convenient hole deflection, making it suitable for geothermal drilling, farm irrigation, and small building piling with drilling capacities up to 260m in depth and 500mm in diameter.
Features:
- Product Name: Borehole Drilling Machine
- Climbing Angle: 25 Degree
- Rod Length (mm): 2000
- Hole Diameter (mm): 140 - 254
- Bore Depth: 260m
- Tractor Horse Power (hp): 50

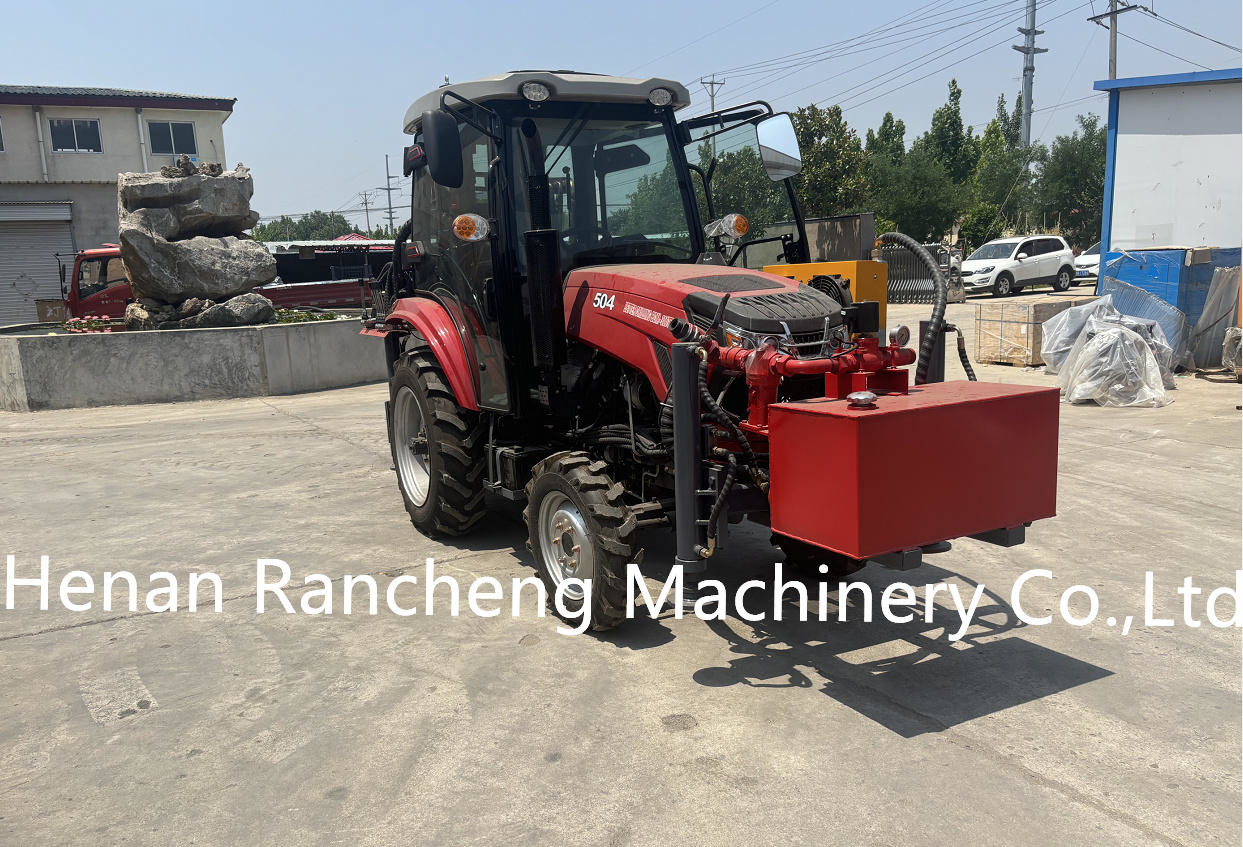

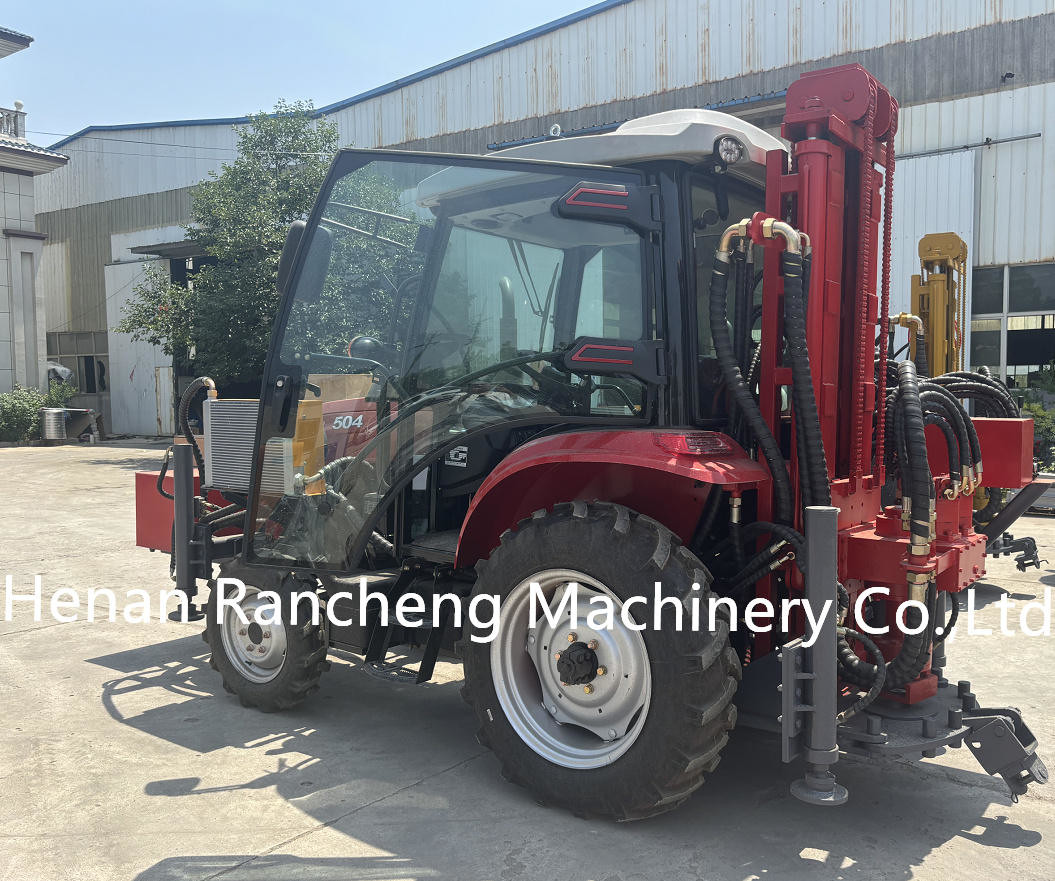

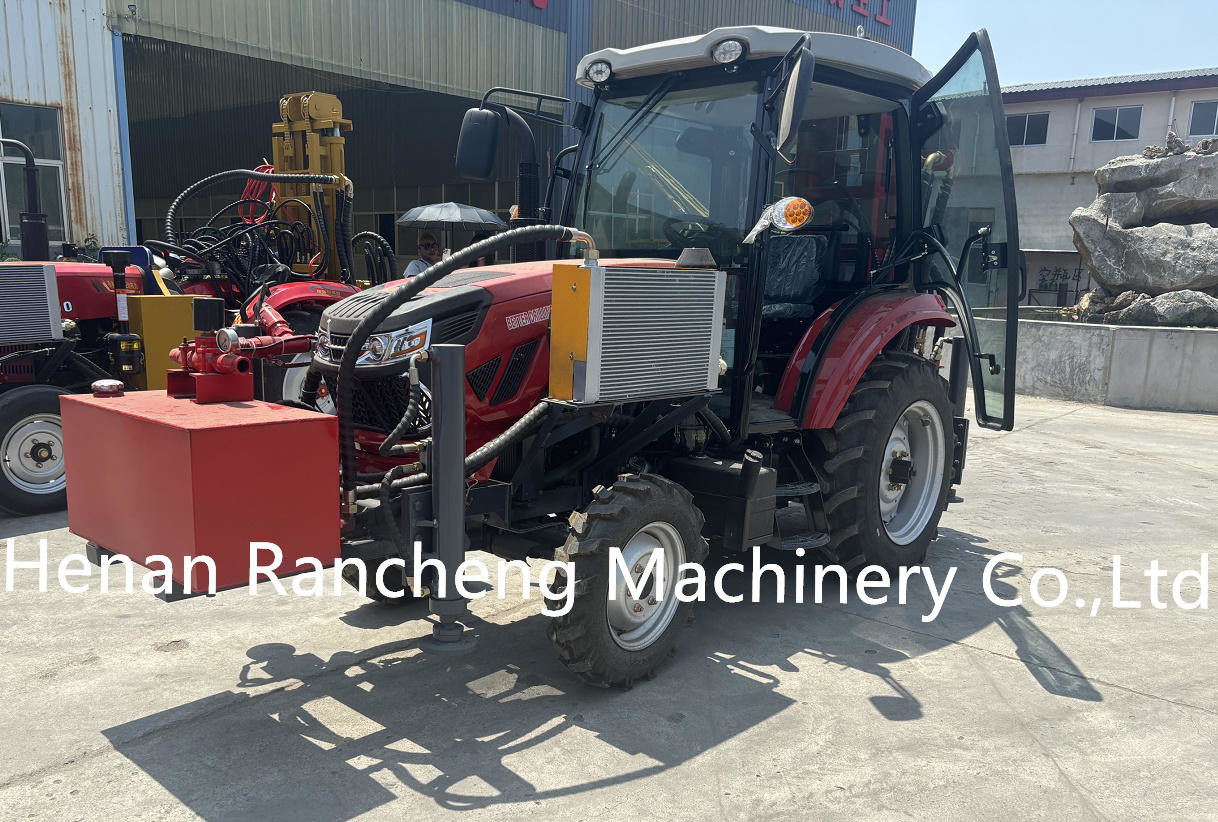

The RCF260WT drilling rig combines with a tractor for both transportation and operation, utilizing the tractor's 50HP diesel engine and hydraulic power for efficient drilling up to 260m. It incorporates mechatronics for easy keyboard and wireless remote control, needs only two operators, and can drill with simultaneous casing using a quick connection plug.
Technical Parameters:
| Product Name: | 260m Bore Depth Borehole Drilling Machine With 4 Wheels Trailer Mounted Portable Hydraulic Water Well Drilling Machine |
| Product Category: | Borehole Drilling Machine |
| Bore Depth: | 260m |
| Hole Diameter (mm): | 140 - 254 |
| Rotation Speed (rpm): | 45 - 65 |
| Air Consumption (m^3/min): | 17 - 31 |
| Weight: | 4500kg |
| Climbing Angle: | 25 Degree |
| Travelling Speed (km/h): | 30 |
| Dimension (mm): | 4000*1700*2700 |
Applications:
The RCF260W is certified by both CE and ISO 9001:2000, ensuring its reliability and durability. It is manufactured in China, with a minimum order quantity of 1 unit. Payment terms include T/T and Western Union, while the supply ability is 100 sets per month, with a delivery time of 10-15 working days.
The borehole drilling machine features an air consumption of 17-31m^3/min, with a rod diameter of 76 and 89mm, making it suitable for drilling different types of boreholes. Its output torque ranges from 5000-5500n.m, while its weight is 4500kg, ensuring its stability during drilling operations.
The RCF260W is suitable for various application scenarios, including geological exploration, water well drilling, and mineral exploration. It is also used for drilling large diameter holes for infrastructure construction, such as bridges, tunnels, and highways.
Support and Services:
1,24/7 service by chat online and phone.
2,Lifelong and free technical support.
3,Service overseas: if you need, we can dispatch an engineer to your door.
FAQ:
Q:Are you the manufacturer?
A: Yes, we are the factory with more than 10 years of manufacturing experience.
Q:What is the warranty of our machine?
A:Our main machine enjoys a 1 year warranty. And we provide videos for machine install and operation.
Q: How long is your delivery time?
A: About 10-15 work days after receipt of the payment.
Q:How do you make our business long-term and good relationship?
A:We keep good quality and competitive price to ensure our customers benefits;
Q:Do you have any certificates for your machine?
A: All of our products coming with the certificates of CE and ISO 9001:2000.
