Portable Water Well Drilling Machine with 150m Drilling Depth and 450mm Diameter
Product Description
The RCS200P portable water well drilling rig has become a leader in the field of water well drilling with its excellent performance and flexibility. Not only does it have a drilling depth of up to 150 meters and a drilling diameter of 100 - 450 mm, it also emphasizes its portability, making it extremely easy to move and transport through well-designed wheels and trailer structures. Equipped with a powerful 22 - horsepower diesel engine, the RCS200P can maintain efficient work efficiency in various environments. Whether in a vast farmland, a home backyard or a private garden, this drill can meet your water well drilling needs and is ideal for multi - scenario applications.
Applications
This water well drilling machine mainly apply to geothermal drilling, farm irrigation,house yard, gardens ,water well drilling and boring drilling etc,it can drill 70-450mm diameter , Max 150m depth,It also can be used in small building piling, like farmhouse or factory, the drilling diameter can reach 450mm ,it can apply to different stratum, such as sand,soil,clay,soft rock and so on.
Product Specifications
| Model of drilling machine | RCS200P |
| Drilling machine overall dimension(mm) | 1800*1000*2000 |
| Weight of Drilling machine (kg) | 1000 |
| Drill rod diameter (mm) | Ø50 |
| Drill rod length(mm) | 1500 |
| Rod change method | Full automatic screw thread |
| Drilling depth(m) | 150 |
| Diesel Motor Power (Hp/kw) | 22/16.2 |
| Drilling method | Percussive and rotating type |
| Drilling hole diameter(mm) | Within Ø 450mm |
| Stroke distance (mm) | 2000 |
| Hosting capacity (kg) | 1500 |
Product Features
1. Light weight, energy saving.
2. Patented product, unique design and simple drilling structure;
3. Easy to transport and can learn how to handle the machine in short time;
4. Can drill through hard stratum, unless thick rock layer ;
5. One person operation, reduce the labor intensity ;
6. High efficiency and work fast;
7. Assure easily operation and long life service life.

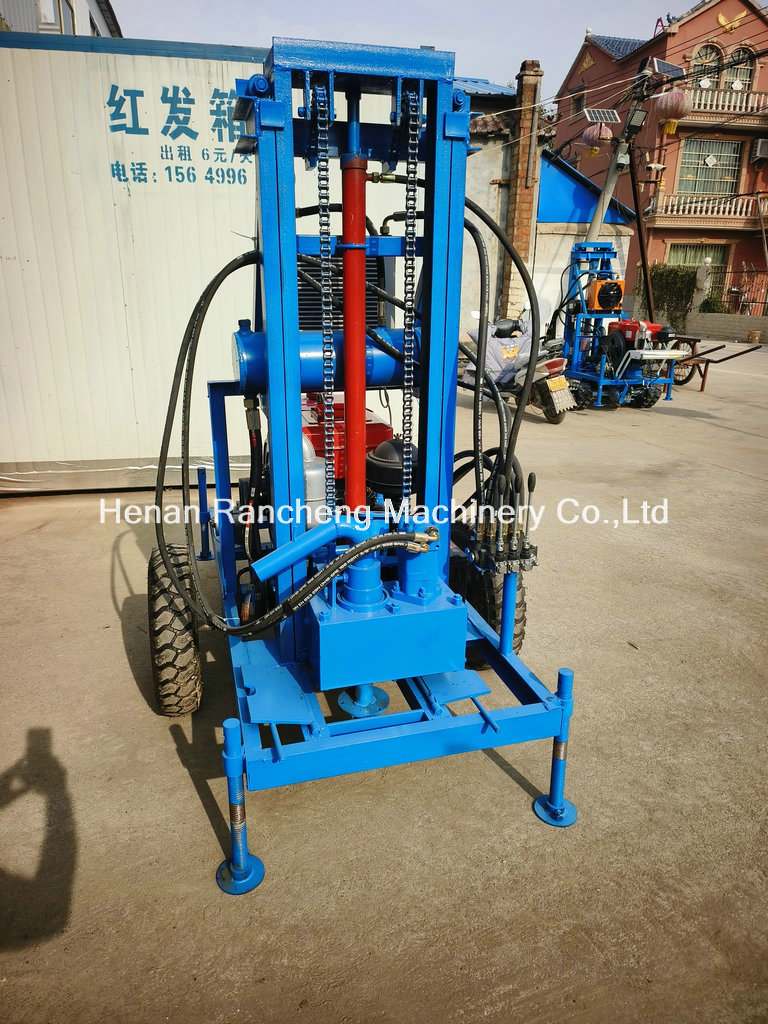

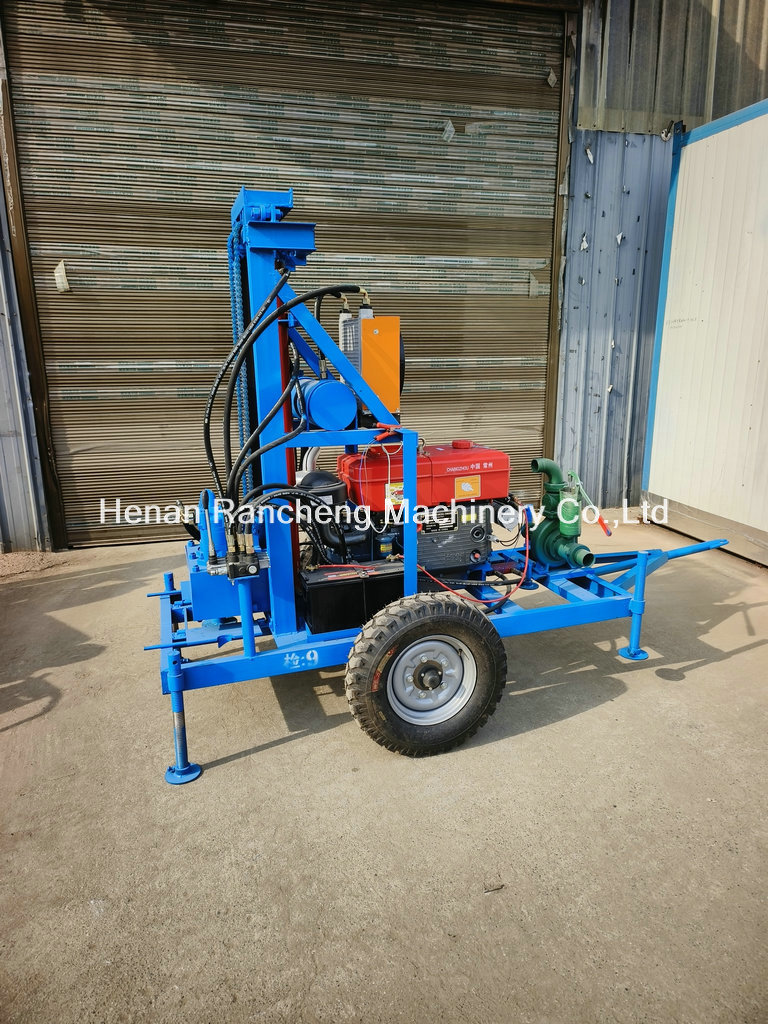

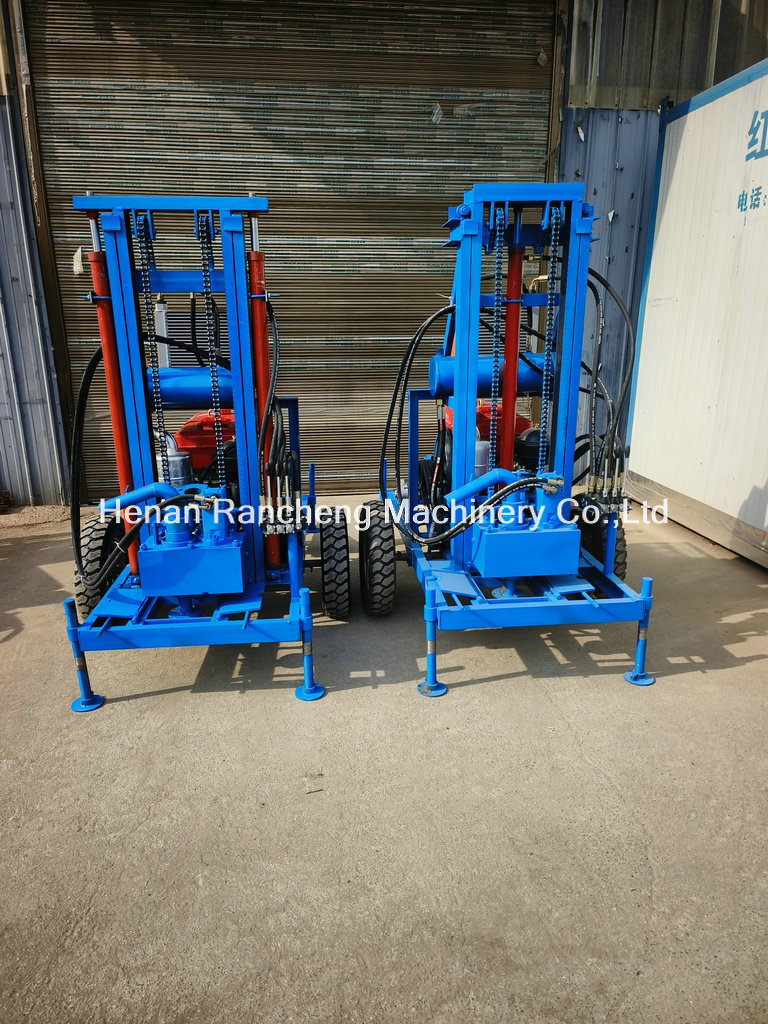

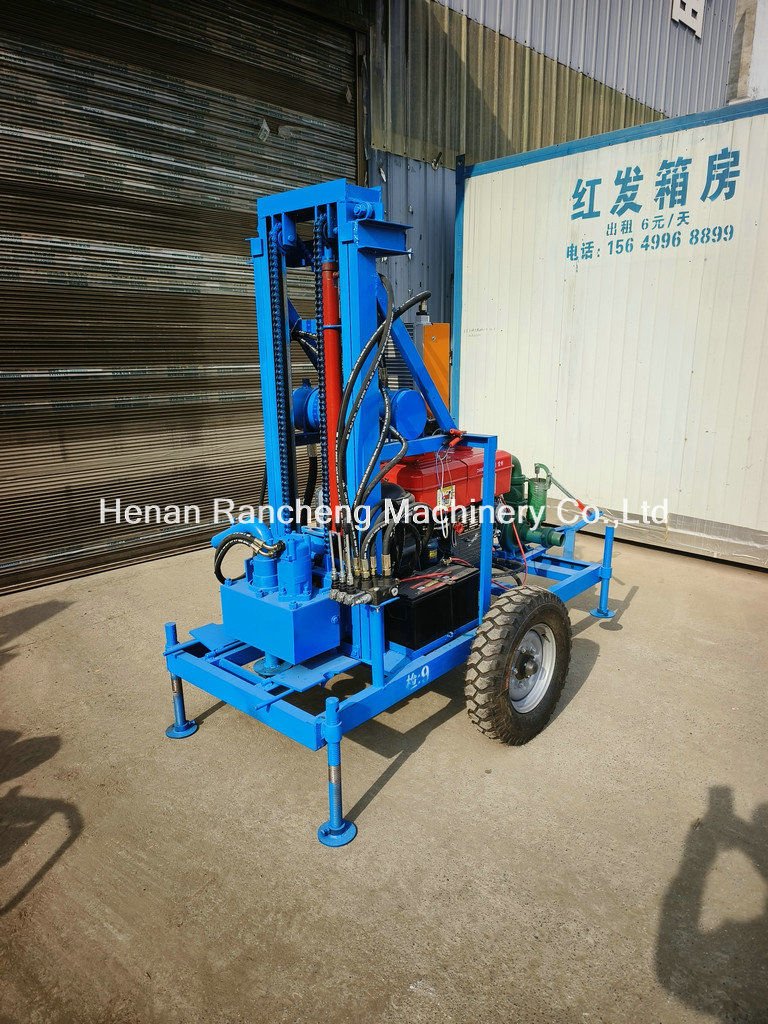

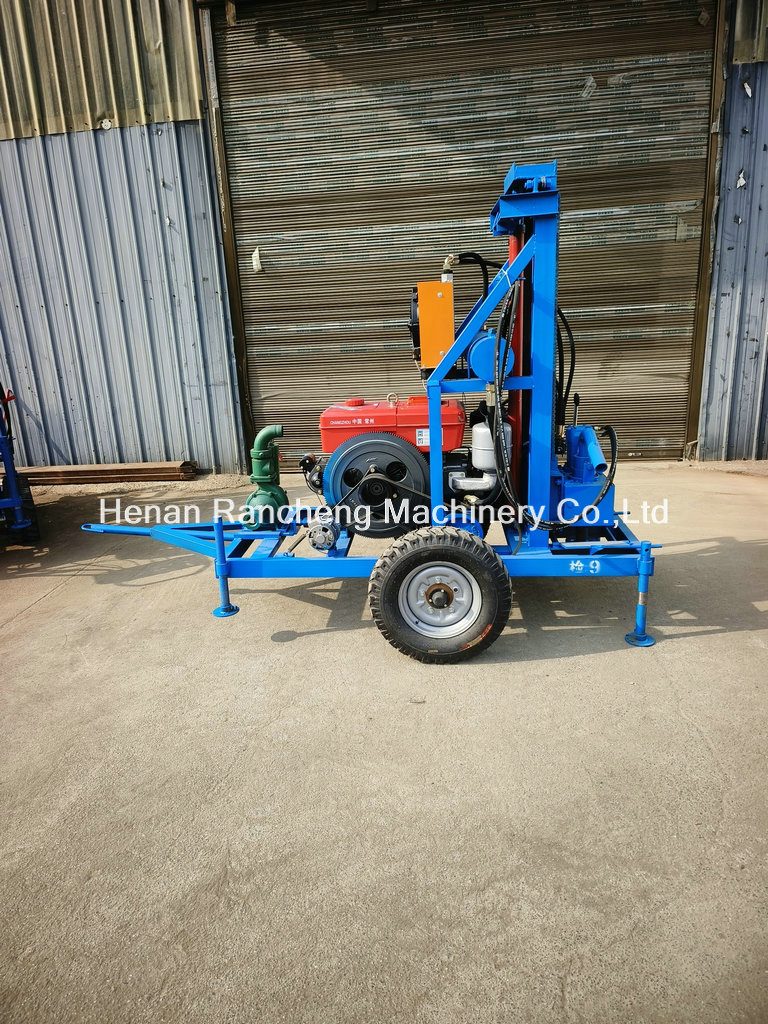

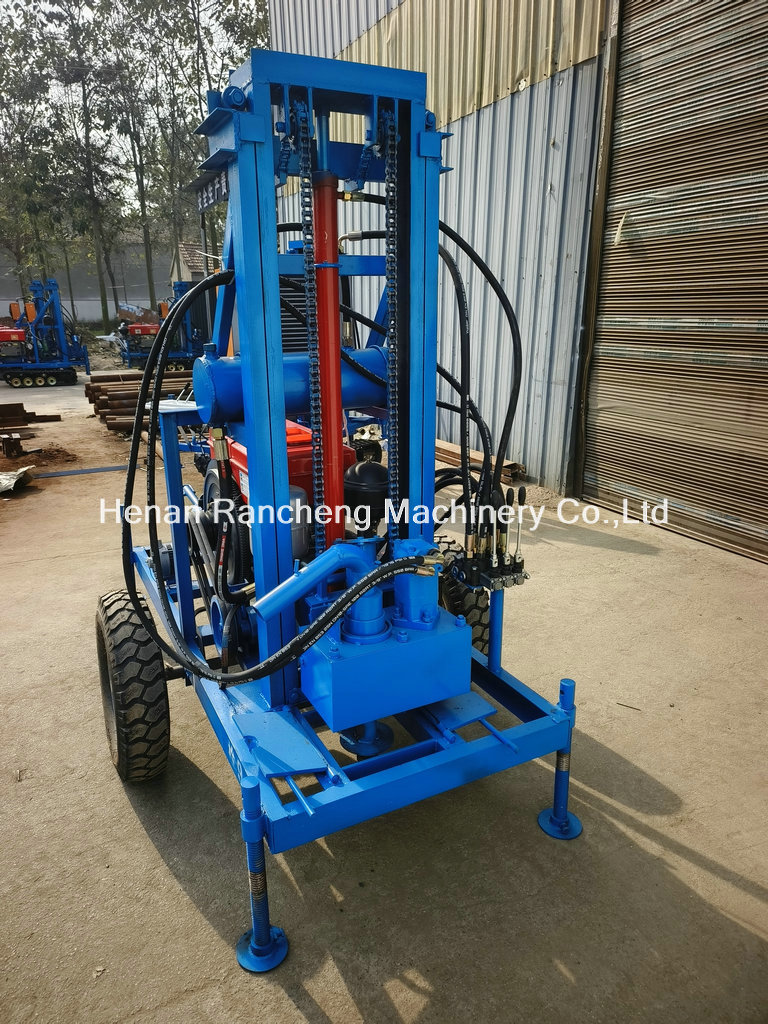

Product Image
Company Information
Henan Rancheng Machinery Co.,LTD is one professional supplier drilling rigs in China ,we are dedicated in designing and manufacture water well drilling rig ,rotary drilling rig ,anchor drilling rig ,core drilling rig,DTH drilling rig ,solar pile driver,mud pump ,air compressor and drilling tools etc,we have advanced technology ,Modern equipment, first-class team and rich experience ,our products passed ISO9001 ,CE etc certificated ,they are exported to around 200 countries and areas in the world ,get very good feedbacks from our clients.
We Pursue the principle of "Customer First, Integrity First", we are sincerely expecting to cooperate with you!!!
