High Performance Low Price 30m Hydraulic Pile Driver Featuring 30HP Diesel Engine
Product Description
The RCKM-30S is a versatile small crawler pneumatic pile driver designed for a range of applications, including solar pile installation, roadside fencing, and mini pile drilling. This multifunctional machine excels in solar screw pile drilling, auger pipe drilling, and DTH drilling.
Equipped with a 30HP diesel engine and hydraulic mechanical transmission, the RCKM-30S offers high efficiency, convenient shifting, and precise multi-angle piling. It is durable, time-saving, and labor-saving, making it particularly well-suited for field engineering construction.
This compact hydraulic earth screw pile driver is ideal for solar power industry projects. It features a crawler travel device and advanced hydraulic travel motor technology, providing excellent maneuverability and adaptability to challenging construction environments such as swamps, quagmires, and potholes. The powerful, reliable brand engine ensures stable operation over long periods. The drill frame's robust design, made from thickened steel plates and enhanced with secondary welding technology, minimizes vibration and tilting during operation, thereby enhancing construction safety.
The RCKM-30S crawler piling rig is appropriate for a variety of projects, including high-speed railway support piles, slope protection piles, solar photovoltaic foundation piles, power grid renovations, civil and municipal construction, new rural developments, landscaping, and more. It performs well across various geological conditions, including soil layers, clay, fill layers, silt, sand, and some gravelly strata.
Product Specifications
| Model | RCKM-30S |
| Rig weight | 1.2t |
| Dimensions (L×W×H) | 2300*1300*2200mm |
| Engine power | 25HP |
| Rotary head torque | 3500N.m |
| Hydraulic oil pump | Single pump |
| hydraulic loading system | Cylinder chain pressure |
| Hydraulic working pressure | 20Mpa |
| Way of walking | Crawler gearbox walking |
| Walking speed | 7-15km/h |
| cooling system | Hydraulic cooler |
| Carriage travel distance | 2.8m |
| Piling height | 1-3m |
| Borehole diameter | 50-300mm |
| Borehole depth | 1-30m |
| Air consumption | 6m3/min |
| Adapt to rock types | Medium hard rock ,F=8-12 |
| Climbing ability | 35° |
| Hydraulic legs | 4 |
Product Features
1. **Drilling Depth and Diameter**: Capable of drilling up to 30 meters in depth with a diameter range of 50-300 mm.
2. **Adjustable Drilling Angle**: Features an adjustable drilling angle from 45° to 90°, ensuring ease of operation and fast drilling efficiency.
3. **Advanced Hydraulic System**: Equipped with a cutting-edge hydraulic system and high-quality hydraulic components, ensuring a long service life.
4. **High Torque Hydraulic Power Head**: Delivers fast drilling speeds and can handle rock drilling with the included impactor.
5. **Branded Single-Cylinder Diesel Engine**: Powered by a reliable, high-performance single-cylinder diesel engine that provides strong power and stable, long-term operation.
6. **Versatile Terrain Adaptability**: Designed to handle a variety of complex terrains without damaging the road surface, offering flexibility and maneuverability.

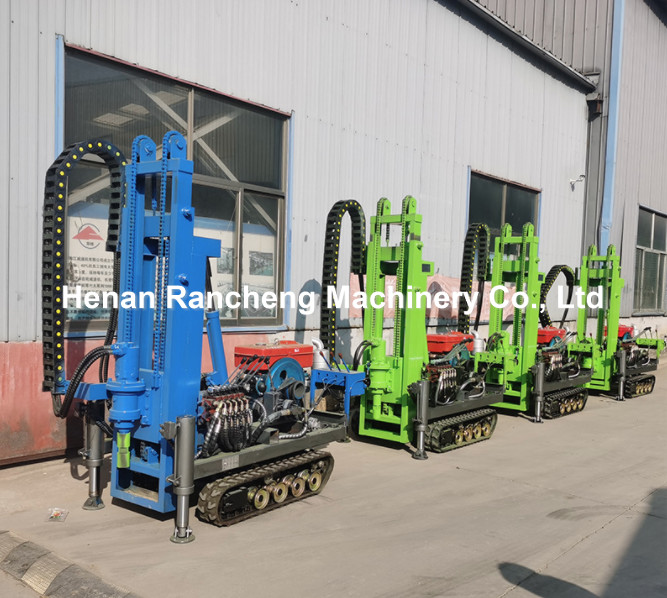

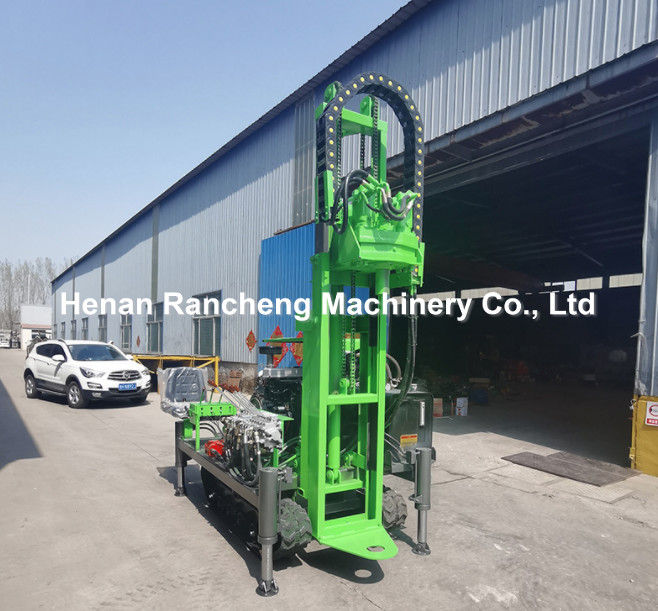

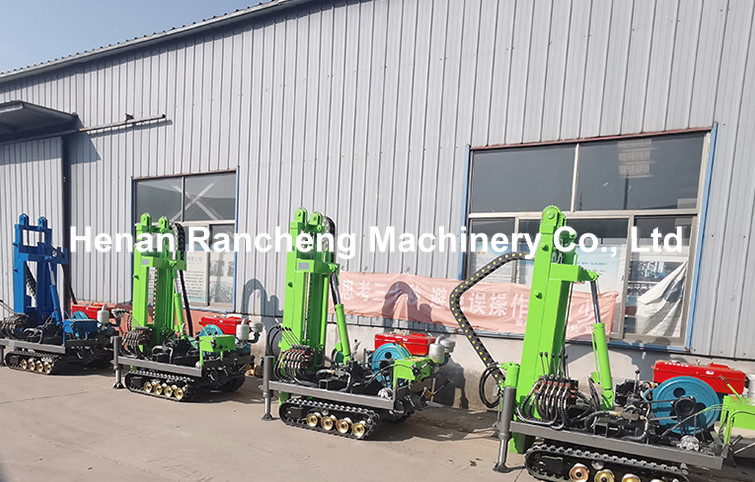

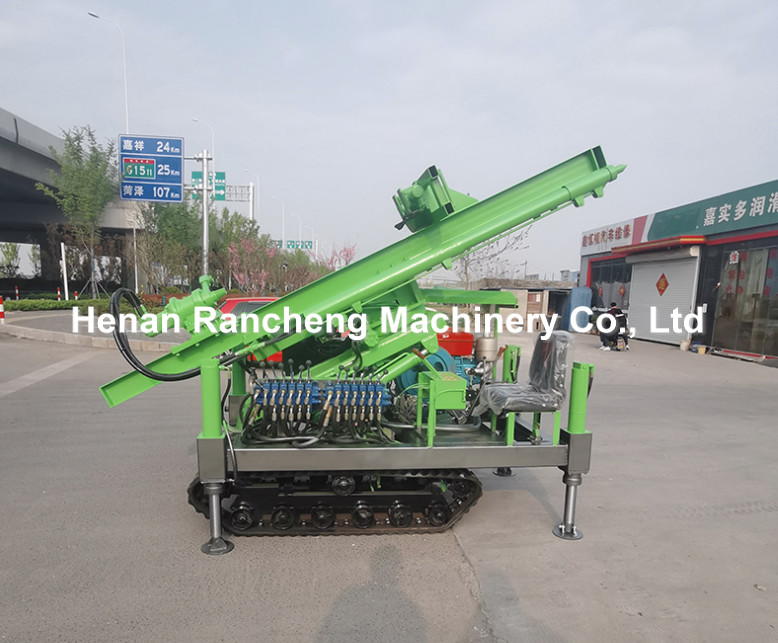

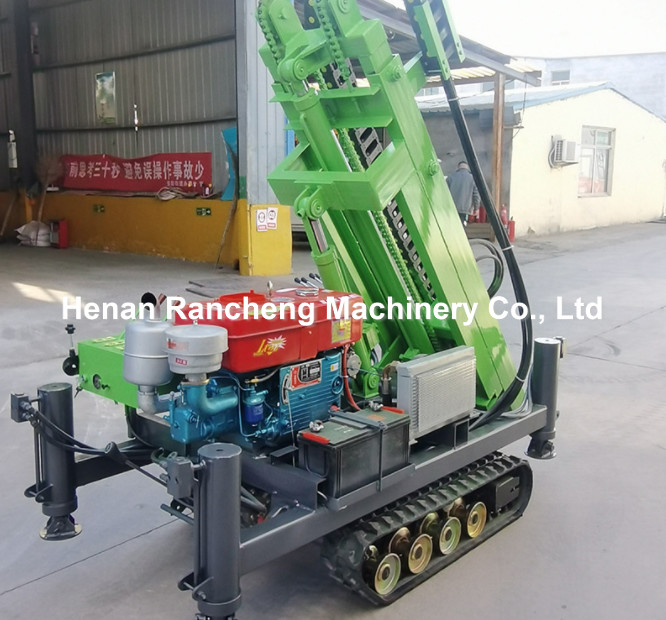

Product Image
