Max Bore diameter 400mm RC130Y Micro Pile Rig Versatile Drilling Solution for Water Wells Auger Piles DTH Projects
Machine introduction
The RC130Y hydraulic down-the-hole (DTH) drilling rig offers outstanding performance with low energy consumption and high efficiency, making it highly convenient for both transportation and on-site construction. It features full hydraulic control and a renowned hydraulic system brand, ensuring smooth operation and stable performance across various working conditions.
The rig’s rotary mechanism incorporates a new dual-motor turret design, which provides strong rotary torque output, enhancing efficiency and construction quality during large hole drilling in open-air blasthole projects. Additionally, the RC130Y excels in mobility and climbing capabilities, making it well-suited for rugged terrain. Its quick and convenient perforation displacement meets the demands of complex engineering environments.
Designed with on-site operational requirements in mind, the RC130Y delivers excellent adaptability and stability. The use of advanced hydraulic control systems ensures ease of operation and reliable performance under diverse conditions. The innovative dual-motor turret design improves rotational torque and operational efficiency, while the rig’s superior mobility and climbing abilities enhance its suitability for various challenging sites. Overall, the RC130Y makes on-site construction more efficient and manageable.
Technical Parameters
| Wind pressure(Mpa) | 1.2--2.46 |
| Air consumption(m³/min) | 10--20 |
| Drilling diameter(mm) | 115---150 |
| Drilling depth(m) | down 62m |
| Once promotion distance(mm) | 3000 |
| Drill diameter(mm) | 76 |
| Skid compensation(mm) | 1200 |
| Maximum lift force(N) | 26000 |
| Guide shell lutting(°) | up and down total 100 |
| Guide shell swing angle(°) | Left and right total 100 |
| Boom lift angle(°) | up and down total 70 |
| Boom swing angle(°) | 70 |
| Grade ability(°) | 30 |
| Chassis ground clearance(mm) | 300 |
| Travelling speed(Km/h) | 0-2.5 |
| Back to the transit speed(r/min) | 0--90 |
| Rotary torque(N.m) | 3100 |
| Host Power(kW) | 56 |
| For rock | 6---20 |
| Total Weight(kg) | 4800 |
| Dimension (L * W * H) | 5270*1950*2400 |
Advantages
The RC130Y hydraulic DTH drilling rig boasts numerous excellent features, including a hydraulic motor that delivers high torque at low speeds, enhancing both performance and stability. It is equipped with a cylinder propulsion system that improves overall performance and stability, and a two-stage air filter that ensures air quality while extending the diesel engine's lifespan. The rig also features a multi-valve control system for straightforward operation and automatic monitoring of hydraulic and propulsion pressures.
Additionally, the RC130Y includes a crawler tensioning device for reliable operation and a spotlight for convenient night-time operations and maintenance. Its compact structure ensures safe and efficient operation across various rugged terrains. The rig is designed to handle drilling diameters of 105-165mm, offering high operating efficiency, easy maintenance, and reliable performance.

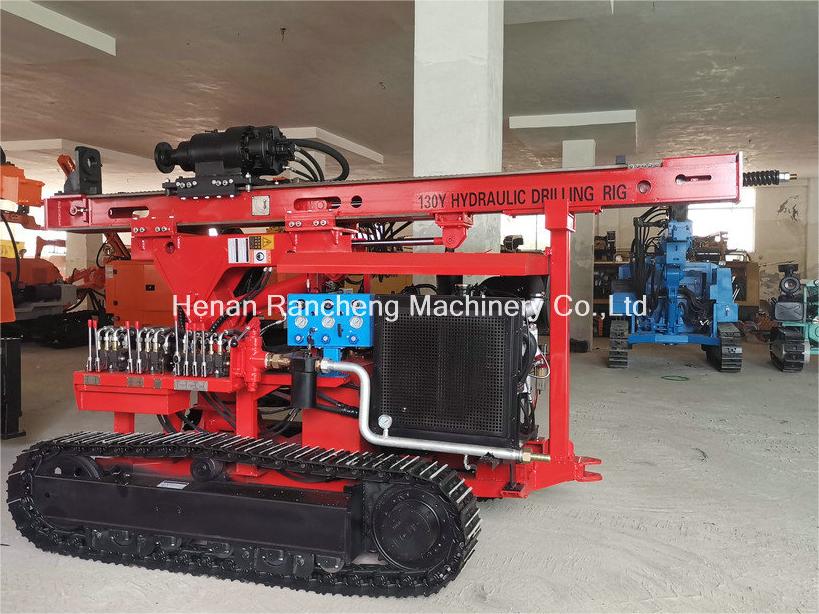

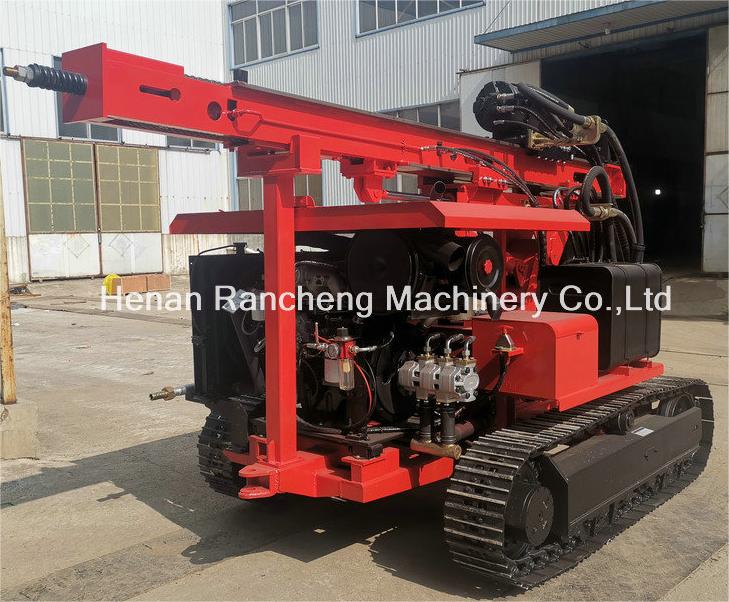

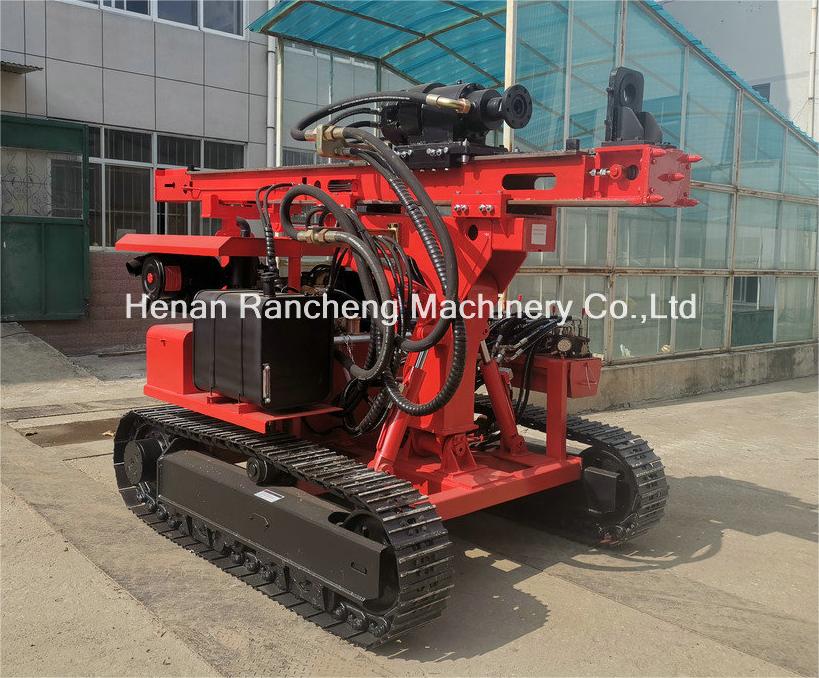

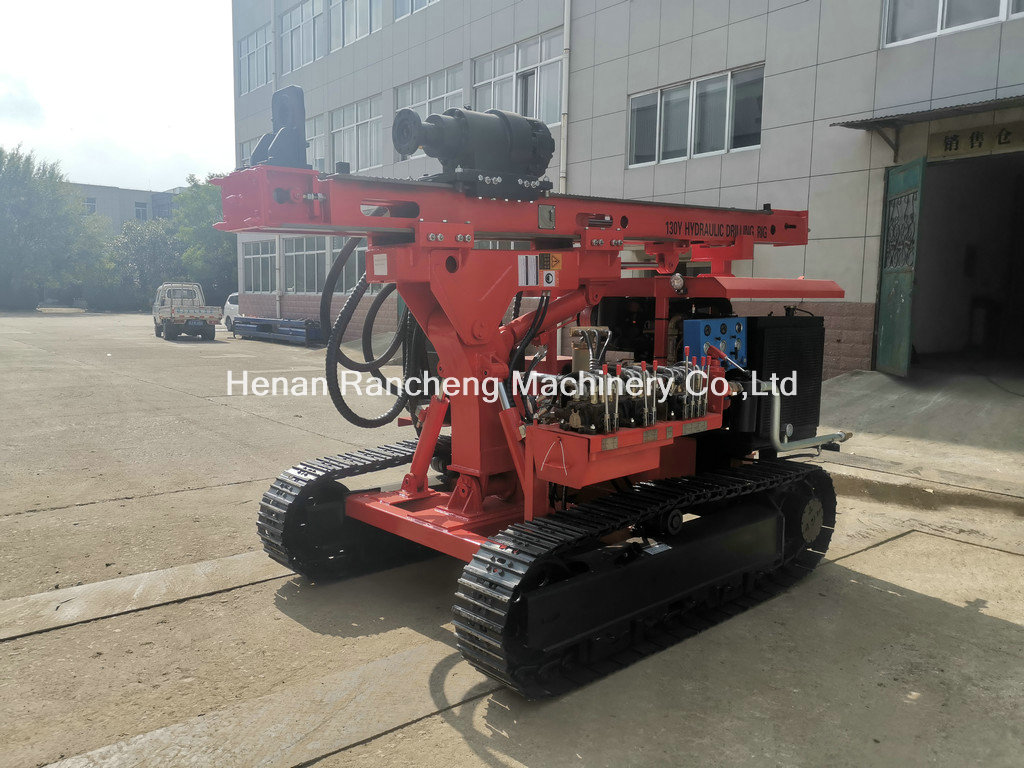

Pictures
