Hydraulic 350m Well Drilling Machine Mounted Drilling Truck Price Diesel Water Well Drilling Rig For Sale
Machine Introduction
RCF350T deepwater well drilling rig is a product independently developed by our company. It is a new generation of down-the-hole drilling rig combined with greater pneumatic power, adopts the latest model and advanced hydraulic technology, has low consumption, large rotation torque, and convenient hole deflection.
It is mainly used for drilling in resource exploration and hydrological wells, civil water wells, agricultural irrigation and other projects.
This machine is made of high-quality materials and has a stylish and compact design, which makes our drilling rig more efficient, with a low failure rate, more economical and durable, and has a high comprehensive cost performance.
Technical Parameters
| Drilling type | Mud pump drilling and air DTH drilling |
| Geology drilled | All kind |
| Drill system and operation | Hydraulic |
| Weight (T) | 15 |
| Drilling Dia(mm) | 140-350 |
| Drilling deep(m) | 350 |
| Mast lifting length(m) | 6.6 |
| Truck drive speed(km/h) | 80 |
| Rig engine power(KW) | 95 |
| Working Air pressure(Mpa) | 1.7-3.5 |
| Air consumption(m³/min) | 18-35 |
| Drilling rod size(mm) | 89 102 |
| Drilling rod length(m) | 3 6 |
| Lifting force (T) | 24 |
| Rotary speed(rpm) | 55-120 |
| Rotary torque(N.m) | 6200-8500 |
| Tuck information | DongFeng brand |
| Truck engine power(KW) | Cummins brand engine 125 |
| Drive type | 4×2 |
| Truck loading capacity | Front 3.5T, behind 9Ton |
| Tire size | 9.00R20 |
| Steering wheel position | Left |
| Mud pump model | BW450-5 |
| pump Size(mm) | 8050×2400×3300 |
Advantage and features
Drilling Capability: Maximum drilling depth: 350 meters; Drilling diameter range: 140-350 mm.
Mobility: Mounted on a 6x4 truck chassis; Integrated with essential components like the drilling rig, mud pump, generator, and diesel engine, making it easy to transport to any location.
Powerful Diesel Engine: Equipped with a 266 hp diesel engine.
Mechanical Top Head Drive: Rotary head offers the benefits of both hydraulic power head systems and traditional turntable types.
Versatile Drilling Methods: Supports multiple drilling methods, including mud positive circulation drilling, air lift reverse circulation drilling, mud DTH hammer drilling, and air DTH hammer drilling; Adaptable to various geological conditions and strata.
Durable and Low Maintenance: Simple structure with mostly mechanical transmission; Low failure rate and reduced maintenance costs.
High Torque and Lifting Capacity: Maximum torque: 9000 NM; Lifting capacity: 24 tons.

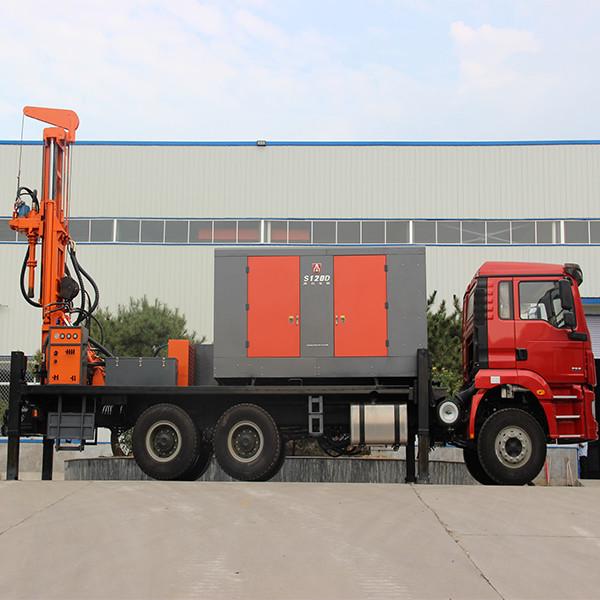

Machine Pictures
