130m / 150m / 200m Depth Small Borehole Drilling Rig With Hydraulic Control System
Machine Introduction
RCJ130W, RCJ150W, RCJ200W small hydraulic drilling rigs are multi-purpose drilling rigs designed for water well drilling and exploration. They use advanced hydraulic technology and design to meet the drilling needs under different geological conditions. For hard rock formations, these drill bits are usually equipped with diamond tips to ensure efficient drilling process and core quality. For softer formations such as clay, alloy coring drill bits are more suitable and can perform drilling work stably.
In addition to the flexibility of drill bit selection, these small hydraulic drilling rigs are also characterized by simple operation and sturdy structure. The actual application effect is good, and the drilling task is completed conveniently and efficiently. Whether in the field of geological exploration or water well drilling, these drilling rigs have shown excellent performance and reliability and are important equipment in drilling operations.
Application:
The drilling rig is mainly used for geological survey and exploration, road and high-rise building foundation exploration, various concrete structure inspection holes, river embankments, well foundation injection, direct injection, civil wells and indoor central air conditioning, etc.
Machine Parameters
| Tech parameter | Model | RCJ130W | RCJ150W | RCJ200W |
| Drilling depth(m) | 130 | 200 | 200 |
| Open hole dia(mm) | 220 | 220 | 325 |
| End hole dia(mm) | 75 | 75 | 75 |
| Drill rod dia(mm) | 42-60 | 42-60 | 42-60 |
| Drill angle | 90-75 | 90-75 | 90-75 |
| Matching power(KW) | 13.2 | 13.2 | 14.7 |
| Dimension(m) | 2.4*0.8*1.4 | 2.4*0.8*1.3 | 2.7*0.9*1.5 |
| Spindle | Speed(r/min) | 142/285/570 | 130/300/48/730/830/1045 | 64/128/287/557 |
| Stroke(mm) | 450 | 450 | 450 |
| Winch | Max pull force(kg) | 2000 | 2100 | 2500 |
| Pull speed(m/s) | 0.41-1.64 | 0.35-2.23 | 0.12-0.95 |
| Rope dia(mm) | 9.3 | 9.3 | / |
| Roll capacity(m) | 27 | 27 | 35 |
| Drill Mast | Rated load(Ton) | 18 | 18 | 18 |
| Height(m) | 6.5 | 6.5 | 6.5 |
| Mud Pump | Flow(L/min) | 95 | 95 | 145 |
| Max Pressure(MPa) | 1.2 | 1.2 | 2 |
| Times/min | 93 | 93 | 93 |
| Inlet hose | Dia(mm) | 51 | 51 | 51 |
| Outlet hose | Dia(mm) | 32 | 32 | 38 |
Machine Characteristics
1. Hydraulic control system, easy to use.
2. Diesel engine power, easy to use, electric is especially suitable for remote areas.
3. Install two wheels, can be transported by pickup truck or tractor, easy to move to any place.
4. Can drill through any hard ground such as soil, sand, gravel, thick stone, marble, etc.
5. Mainly used for agricultural/industrial irrigation well drilling, soil testing, SPT testing, soil sampling, geotechnical exploration, land survey, etc.
6. Four pairs of vertical bearings are placed on the gravel layer of the rotary machine to ensure that it can meet complex geological conditions.
7. This drilling rig adopts a cone clutch with national patent technology, which has the characteristics of strong torque transmission, easy operation and maintenance-free.

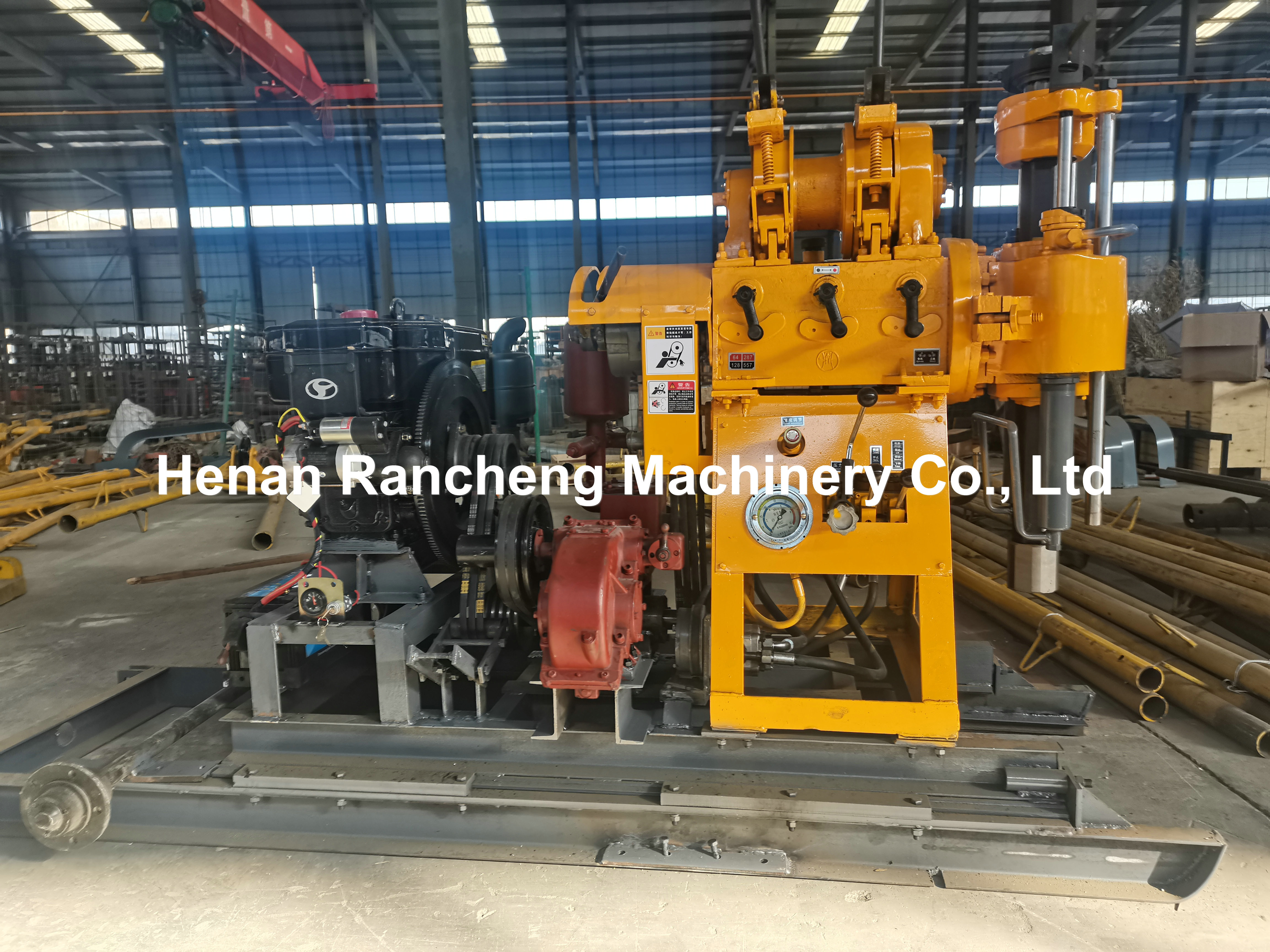

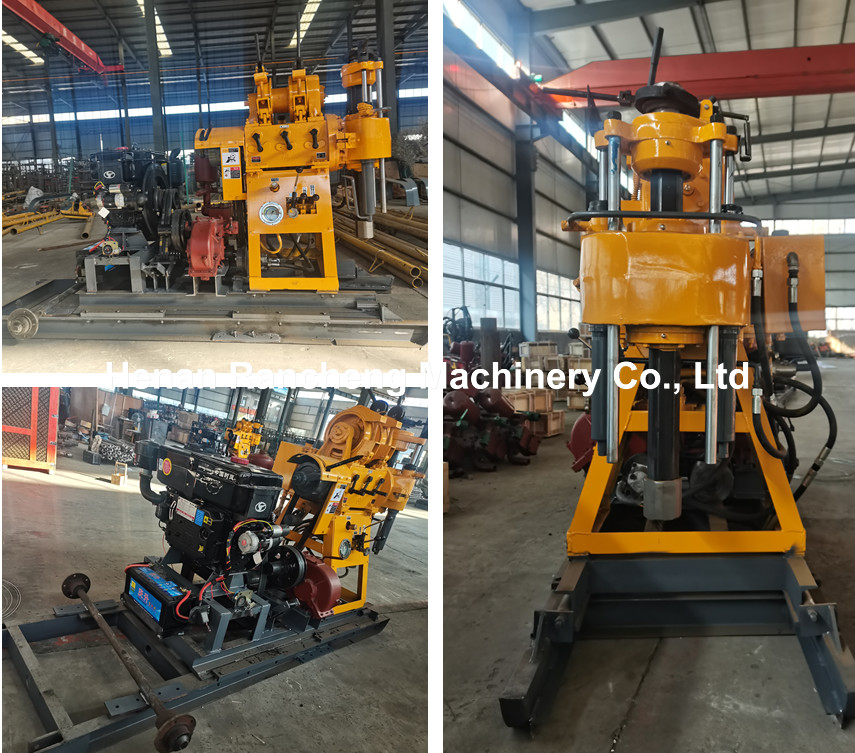

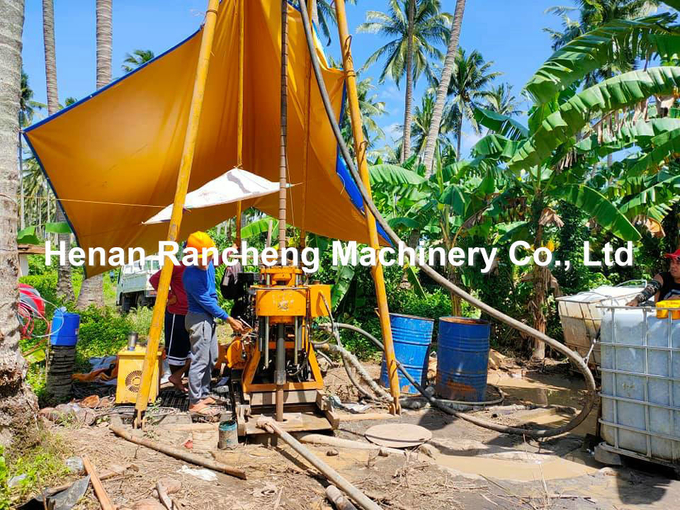

Machine Pictures
