Hydraulic Crawler Mounted 160m Borehole Drill Wells Water Well Drilling Rigs Machine with 35HP Engine
Product Description:
This water well drilling machine mainly apply to geothermal drilling, farm irrigation,house yard, gardens ,water well drilling and boring drilling etc,it can drill 70-450mm diameter , Max 160m depth,It also can be used in small building piling, like farmhouse or factory, the drilling diameter can reach 450mm ,it can apply to different stratum, such as sand,soil,clay,soft rock and so on.
Features:
1, It is 35HP diesel engine, very convenient to work in where is no electric.
2, It drill max 100-160m depth, max 450mm diameter, small machine, but big drilling capacity.
3, It is hydraulic operation system, very easy to operate, one person can operate it, save labor.
4, It can drill hard clay, soil, soft rock etc hard stratum, with fast drilling speed.
5, It is mainly used for farm irrigation well drilling, yard well drilling and mini pile foundation etc.
6, Small investment, but big return, all clients are very satisfied to it and earn big money by it.
Technical Parameters:
| Model of drilling machine | RCS260C |
| Walking way | Rubber crawler mounted |
| Drilling machine overall dimension(mm) | 2300*1080*2000 |
| Weight of Drilling machine (kg) | 1000 |
| Drill rod diameter (mm) | Ø64 |
| Drill rod length(mm) | 1500 |
| Rod change method | Full automatic screw thread |
| Drilling depth(m) | 160 |
| Diesel Motor Power (Hp/kw) | 35HP /25.8KW |
| Drilling method | Percussive and rotating type |
| Drilling hole diameter(mm) | Within Ø 450mm |
| Stroke distance (mm) | 2000 |
| Hosting capacity (kg) | 4000KG |
Support and Services:
1,24/7 service by chat online and phone.
2,Lifelong and free technical support.
3,Service overseas: if you need, we can dispatch an engineer to your door.
Packing and Shipping:
delivery time :10-15days
standard exporting packing
FAQ
Q:Are you the manufacturer?
A: Yes, we are the factory with more than 10 years of manufacturing experience.
Q:What is the warranty of our machine?
A:Our main machine enjoys a 1 year warranty. And we provide videos for machine install and operation.
Q: How long is your delivery time?
A: About 10-15 work days after receipt of the payment.
Q:How do you make our business long-term and good relationship?
A:We keep good quality and competitive price to ensure our customers benefits;
Q:Do you have any certificates for your machine?
A: All of our products coming with the certificates of CE and ISO 9001:2000.

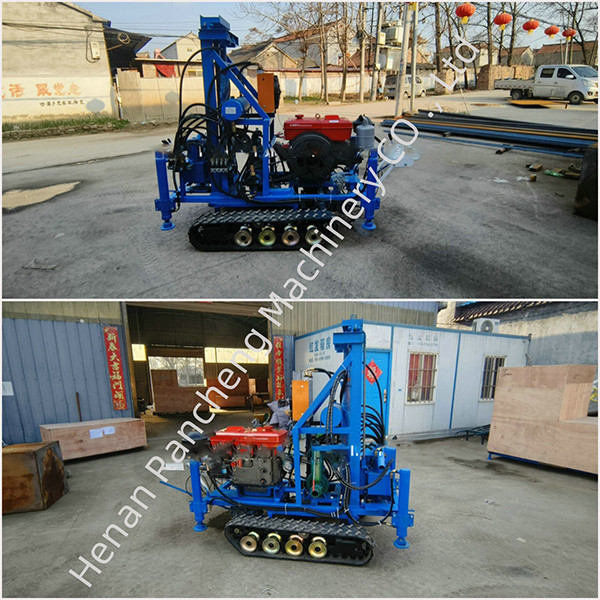

Machine pictures
