400m Full Hydraulic Water Well Drilling Rig Machine With 92KW Yuchai Engine

Name: 400m Full Hydraulic Water Well Drilling Rig Machine With 92KW Yuchai Engine
Brand: RanCheng
Price: 1 USD

Quality 400m Full Hydraulic Water Well Drilling Rig Machine With 92KW Yuchai Engine wholesale

Brand Name : RanCheng

Model Number : RCF400C

Certification : CE, ISO 9001:2000

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 100sets per Month

Delivery Time : 10-15 working days

Packaging Details : It can be shipped by one 20" container

Name : Full Hydraulic Water Well Drilling rig

Model : RCF400C

Drilling Depth : Max 400m

Rotary speed : 66-135r/min

Dimension(L*W*H) : 6000×2100×2550mm

Drilling way : Air compressor drilling or mud pump drilling

Contact Now

400m full hydraulic water well drilling rig machine with 92KW Yuchai engine

Machine Introduction

RCF400C deep water well drilling rig is our independent research and development products. These new generation DTH are coupled to higher air power, and thus play a significant role in leading to faster drilling rates.

Made from high quality materials, with fashion and compact design, that keeps our drilling rigs more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance. Our water drilling rigs have received the real market validation as the majority of our customers’ positive feedback.

Technical Parameters

Bore diameter(Hammer)	140-350mm
Bore depth	400m
Air consumption	17-36m³/min
Air pressure	1.7-3.5Mpa
Pipe diameter	89mm/102mm
Pipe length	1.5m/2m/3m/6m
Lifting force	22T
Lifting speed	3m/min
feeding speed	0.5-5m/min
Fast lifting speed	20m/min
Fast feeding speed	40m/min
Max torque of rotary	6200-9000Nm
Rotary speed	66-135r/min
Hoist lifting capacity	2T
Mud Pump flow	450L/min (option)
High hydraulic leg	1.4m
Feeding efficiency	15-35m/h
Travel speed	2.5Km/h
Climb ability	30°
Dimension(LWH)	6000×2100×2550mm
Weight	9200Kg
Diesel engine	92KW Yuchai engine
Drilling way	Air compressor drilling or mud pump drilling

Application

our RCF450C water well drilling machine are mainly used for well drilling in resource exploration and hydrology wells, civil use water well, agriculture irrigation etc projects.

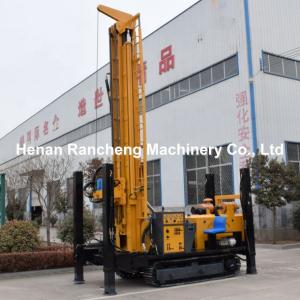

Machine Pictures
