Factory Price Bore Depth 300m Power 85KW Hydraulic Water Drilling Rig machine
Product Description
The RCF300C Hydraulic Water Drilling Machine is a high-performance, crawler-mounted rig designed for deep water well drilling. With a drilling depth capability of up to 300 meters, it is ideal for a variety of applications, including irrigation, home drinking water, geothermal, and industrial wells. Powered by an 85KW Yuchai diesel engine, the machine offers both mud pump and DTH air drilling methods, providing flexibility for different drilling conditions. Its steel crawler-mounted design ensures stability and mobility, making it suitable for diverse terrains.
The RCF300C incorporates advanced hydraulic technology and top head drive, delivering high rotary torque for efficient drilling. Its compact structure, combined with an adjustable mast compensation function, guarantees good stability during operation. When drilling, the mast is supported on the ground, ensuring excellent borehole stability for smooth and reliable drilling performance.
Application
This deep well drilling rig is primarily used for a variety of projects, including irrigation well drilling, home water well drilling, geothermal well drilling, hydrology well drilling, civil water well drilling, and industrial well drilling, among others.
Technical Parameters
| Model | RCF300C |
| Bore diameter(Hammer) | 100-350mm |
| Bore depth | 300m |
| Air consumption | 17-35m³/min |
| Air pressure | 1.7-3.0Mpa |
| Pipe diameter | 89mm/102mm |
| Pipe length | 1m/2m/3m |
| Lifting force | 18T |
| Lifting speed | 3m/min |
| feeding speed | 0.5-5m/min |
| Fast lifting speed | 30m/min |
| Fast feeding speed | 50m/min |
| Max torque of the rotary | 7000-9000Nm |
| Rotary speed | 40-70r/min |
| Hoist lifting capacity | 2T |
| Mud Pump flow | 450L/min (option) |
| High hydraulic leg | 1.5m |
| Feeding efficiency | 10-35m/h |
| Travel speed | 2.5Km/h |
| Climb ability | 30° |
| Dimension(L*W*H) | 4200×2200×2600mm |
| Weight | 7200Kg |
| Diesel engine | 85KW Yuchai engine |
| Drilling way | Air compressor drilling or mud pump drilling |
Advantages
1. The rig features a hydraulic system that makes it simple and efficient to operate, even for users with minimal experience.
2. Powered by an 85KW diesel engine, this rig is ideal for use in areas without access to electricity, ensuring flexibility and convenience in remote locations.
3. With its fully hydraulic system and top-drive slewing propulsion lifting, the rig can accommodate a variety of drilling processes and tools. This allows for flexible control, faster drilling speeds, and reduced auxiliary time, resulting in high operational efficiency.
4. The rig is capable of drilling through a wide range of strata, including clay, soil, and hard rock, making it suitable for diverse drilling environments.
5. It is perfect for a range of projects, including irrigation well drilling, home water well drilling, geothermal well drilling, hydrology well drilling, civil water well drilling, and industrial well drilling.

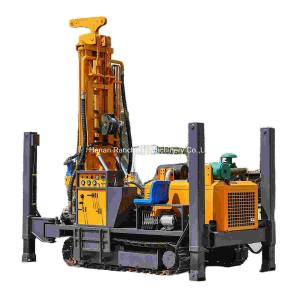

Machine picture display
