Best Selling Wheel Trailer Mounted Borehole 220m Deep Water Well Drilling Rig Machine
Machine Introduction
The RCF220W deep rock water well drilling rig is a powerful and versatile fully hydraulic rig designed for high-efficiency drilling across diverse applications. Equipped with a 65KW engine, this rig is capable of reaching depths up to 220 meters, making it ideal for a range of projects, including geothermal wells, farm irrigation wells, and drinking water wells.
The RCF220W can operate with both mud pump drilling for softer strata and down-the-hole (DTH) air drilling for harder rock formations. The rig’s large turntable torque allows for enhanced penetration and fast progress in various ground conditions. When drilling in rock, the DTH hammer is employed, effectively breaking through hard layers while discharging debris using air pressure, achieving a significantly higher efficiency compared to traditional rotary drilling methods.
With a lifting force of 13 tons, the RCF220W is built for robust performance in challenging environments, supporting both industrial and agricultural water well drilling as well as geothermal and geological exploration needs.
Technical Parameters
| Bore diameter(Hammer) | 90-300mm |
| Bore depth | 220m |
| Air consumption | 17-31m³/min |
| Air pressure | 1.7-2.5Mpa |
| Pipe diameter | 76mm/89mm |
| Pipe length | 1m,2m,3m |
| Lifting force | 13T |
| Lifting speed | 2.5m/min |
| feeding speed | 0.5-5m/min |
| Fast lifting speed | 24m/min |
| Fast feeding speed | 35m/min |
| Max torque of rotary | 3400-4700Nm |
| Rotary speed | 45-70r/min |
| Hoisting force of winch | 1.4T |
| Mud Pump flow | 250L/min (option) |
| High hydraulic leg | 1.5m |
| Feeding efficiency | 10-35m/h |
| Travel speed | 2.5Km/h |
| Climb ability | 30° |
| Dimension(L*W*H) | 4×1.75×2.25M |
| Weight | 5500Kg |
| Diesel engine | 65KW Quanchai engine |
Machine Advantages
1. Centralized Control Console: The control console provides a user-friendly interface for all operations, enabling quick pulling and lifting to reduce auxiliary time, maximizing work efficiency.
2. Integrated System on Chassis: With the main transmission system, gearbox, transfer case, double winch unit, mud pump, turntable, drilling tower, and feeding system all mounted on the chassis, the RCF220W is designed for compactness and ease of transport, supporting seamless operation and stability.
3. Versatile Drilling Capabilities: This hydraulic rotary rig can be equipped with BW250 mud pumps, using mud as a washing fluid, and is capable of drilling through various materials, such as clay, sand, and rock, when fitted with suitable drill bits.
4. Powerful Diesel Engine: The high-power diesel engine drives a large-displacement, high-pressure plunger pump, delivering strong and stable power, ideal for high-demand drilling operations.
5. Adjustable Pulling Force: The machine’s pulling force is adjustable, allowing it to adapt easily to the demands of deep-hole drilling.
6. Main Winch for Enhanced Efficiency: Equipped with a main winch, the rig performs highly efficiently, especially when drilling in mudstone and weathered rock layers.
7. Optional Generator: A generator can be added to facilitate welding or night lighting, adding convenience and flexibility to the operation.

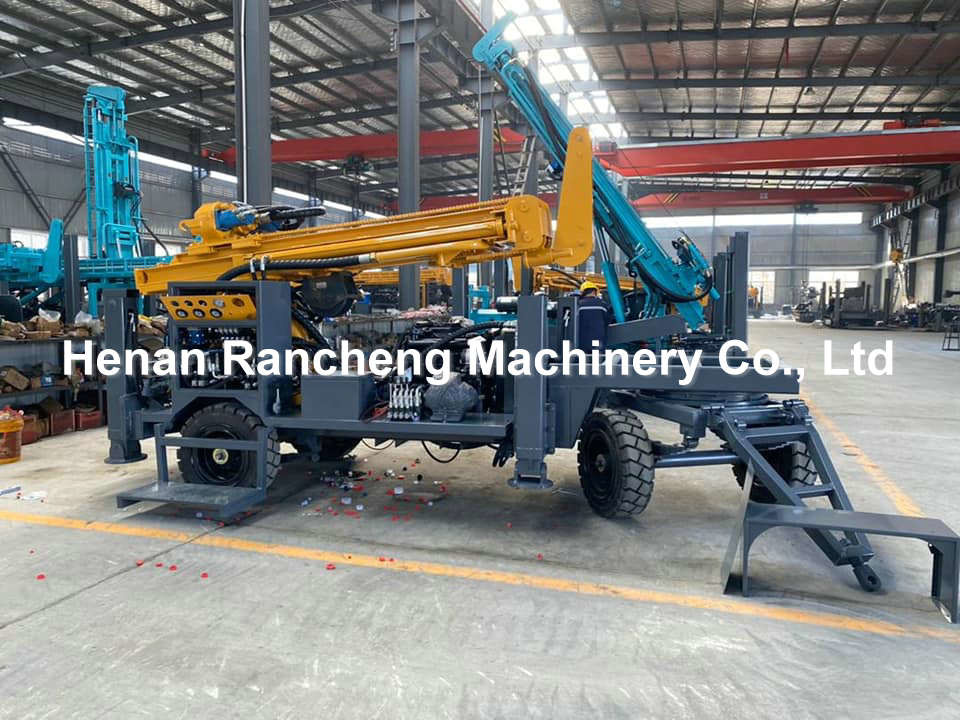

Machine Pictures
