300 Meters Depth Mining drilling rig Equipment Machine water well Borehole Mounted On truck
Machine Introduction
RCF300T deep water well drilling rig is a product independently developed by our company. The new generation of down-the-hole drilling rigs combined with greater pneumatic power have played an important role in increasing drilling speed.
Using the latest model and advanced hydraulic technology, it has low consumption, large rotation torque, and convenient hole deflection. It is mainly used for resource exploration and drilling of hydrological wells, civil water wells, agricultural irrigation and other projects.
Made of high-quality materials, with a stylish and compact design, our drilling rigs are more efficient, have a low failure rate, are more economical and durable, and have a high comprehensive cost-effectiveness. Our water well drilling rigs have been truly verified by the market and have received positive feedback from most customers.
Technical Parameters
| Model | RCF300T |
| Dimension | mm | 10600*2500*3550mm |
| weight | kgs | 18000 |
| Aperture | mm | 140-350 |
| Drilling depth | m | 300 |
| Feed stroke | mm | 3400 |
| Travel speed | km/h | 80 |
| Grade ability | Max. | 30° |
| Wind pressure | Mpa | 1.7-3.0 |
| Air consumption | m³/min | 15-35 |
| Drill pipe diameter | mm | φ89/ 102 |
| Drill pipe length | m | 3 |
| Lifting force | T | 18 |
| Rotary speed | rpm | 40-70 |
| Rotation torque | N.m | 5700-7500 |
| Mud pump | 450L/min | BW450/2 (optional item ) |
| Carrying vehicle | | HOWO truck |
| Load vehicle engine | | 266 HP |
| Driving form | | 6X4 |
| Steering wheel | | Right position (optional item ) |
| Air compressor | | S100DB Matching diesel engine:Yuchai Rated Power (KW):295 Capacity(m3/min):31 Working Pressure(bar):25 |
Machine Advantages
1.High drilling efficiency: RCF300T well digger truck adopts advanced hydraulic system, which greatly improves drilling efficiency. It has high drilling speed and can complete deep and wide drilling operations in a short time.
2.Comfortable operation: RCF300T well digger truck is humanized in design, equipped with a spacious cab and air conditioning, providing a comfortable working environment, suitable for various extreme weather conditions.
3.High mobility and portability: The drilling rig is small in size, light in weight, and has excellent mobility, which is convenient for quick movement from one location to another, reducing transportation costs. At the same time, it does not require large equipment and is easy to operate, greatly reducing manpower and material costs.

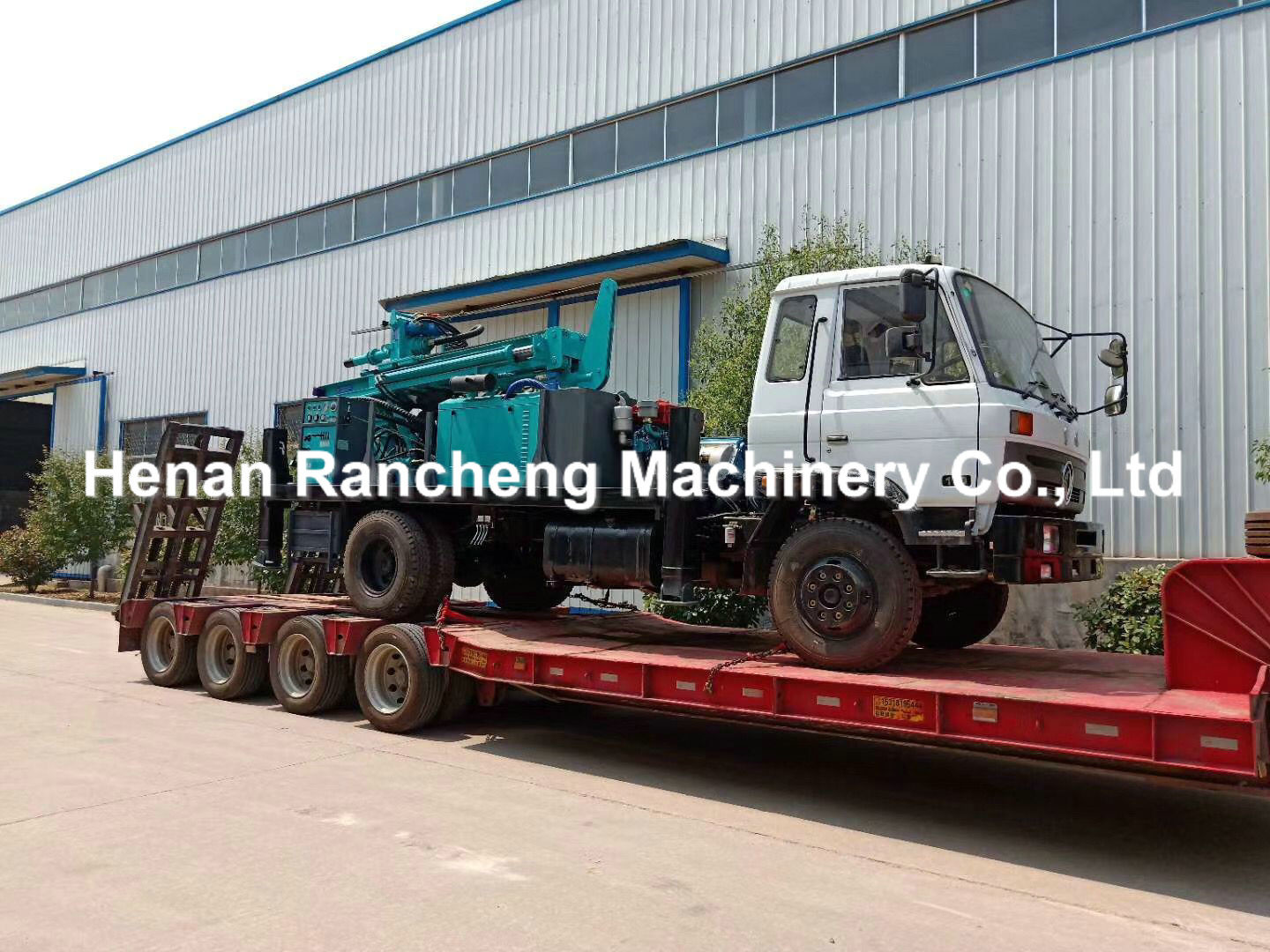

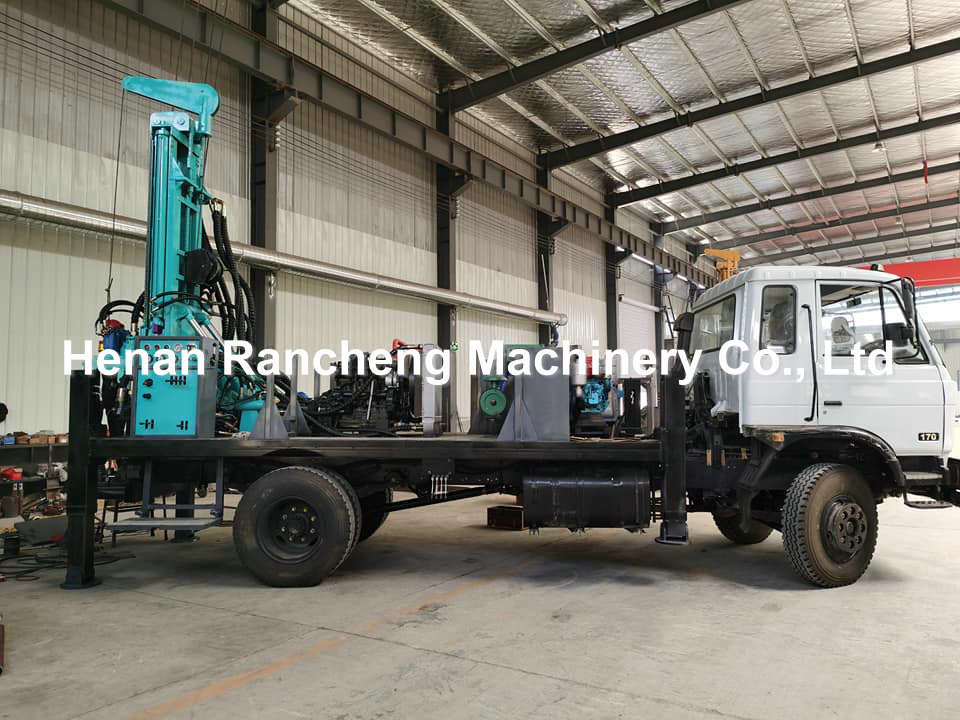

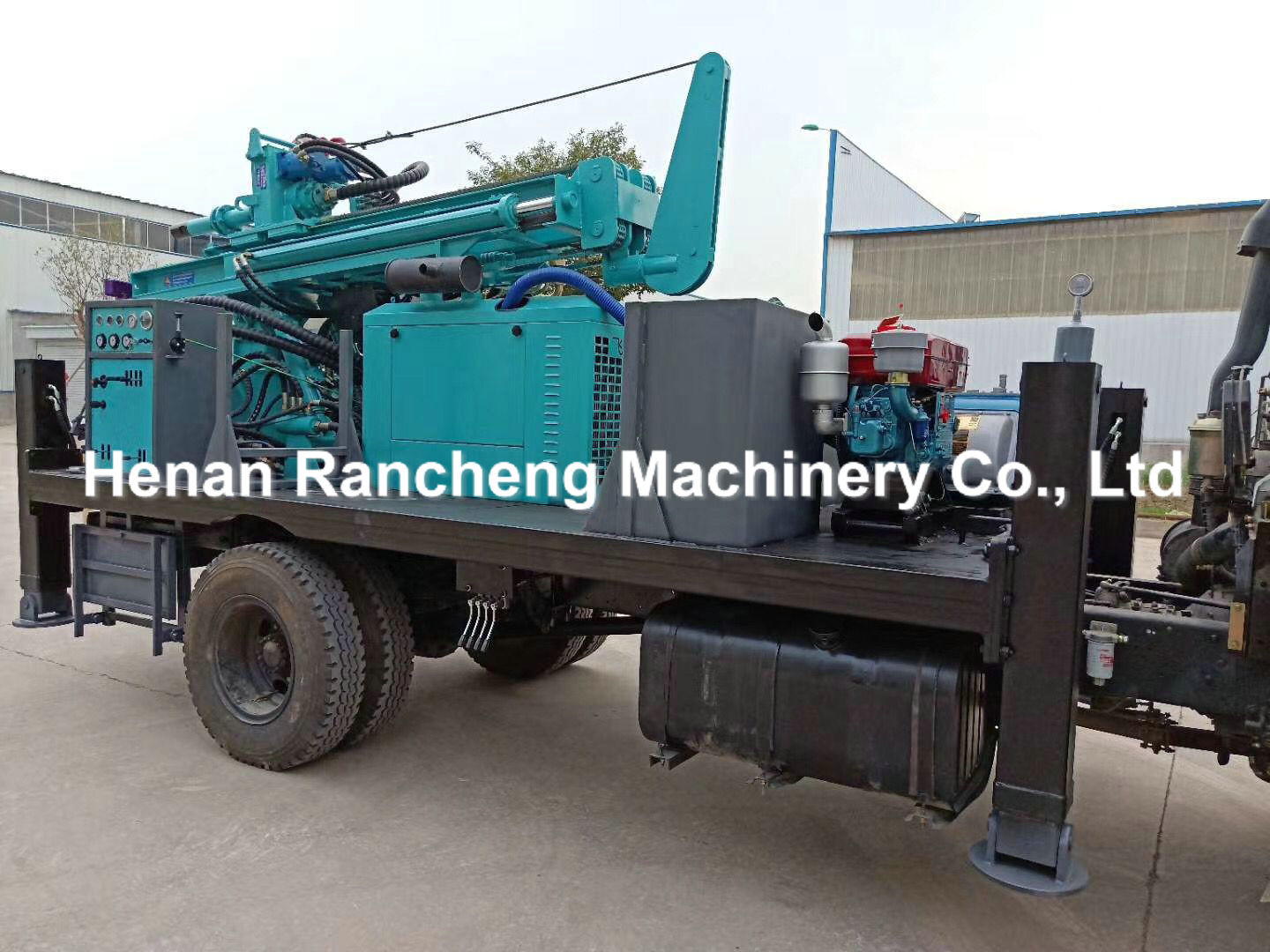

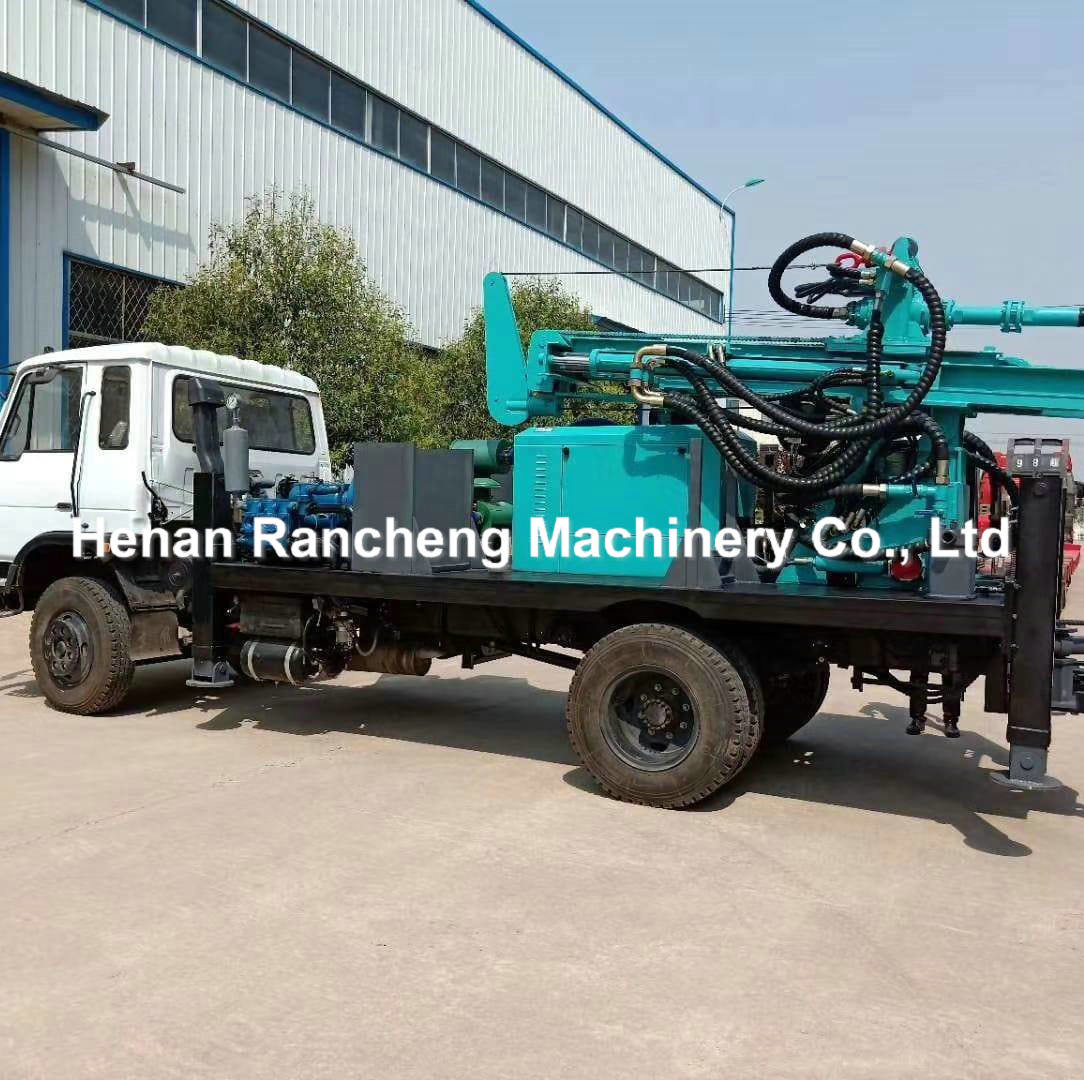

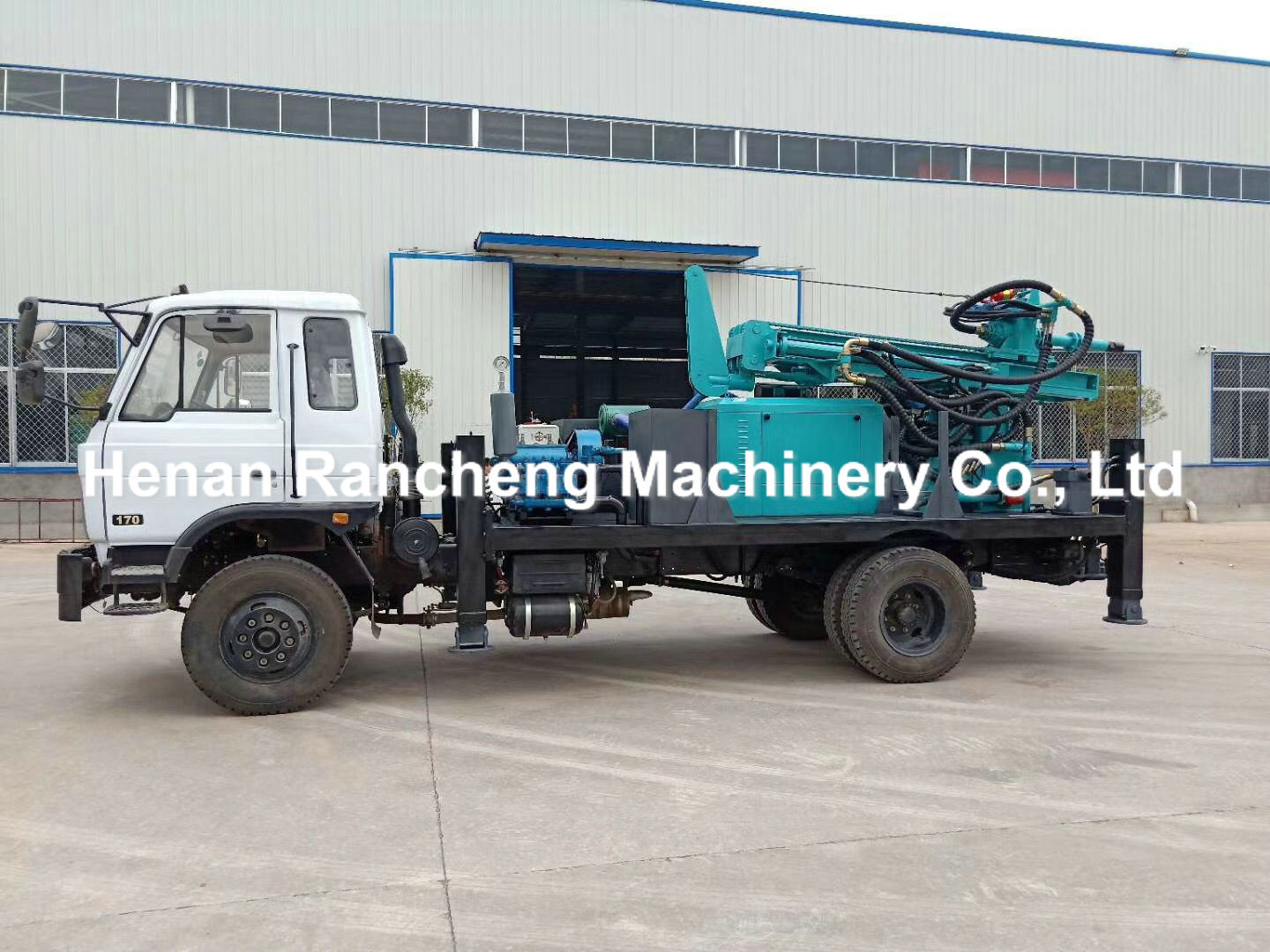

Machine Pictures
