150m DTH Hydraulic Water Well Drilling Rig Machine Portable Pneumatic Tractor Mounted Drilling Rig
Machine Introduction
The RC150WT tractor mounted drilling rig adopts advanced top drive technology, vibration technology, and full hydraulic control, which saves 50% energy compared with similar drilling rigs. The drilling rig has no complicated mechanical operating handles, compact structure, sturdy and durable, and does not need to be disassembled during transportation. It has fast drilling speed, strong stability, and high vertical drilling accuracy.
The power head adopts a vibration-combined gear reducer with large torque; when encountering hard rock, the vibration function can be used to increase the drilling speed. It is an ideal drilling equipment for domestic and foreign users.
Technical Parameters
| Drilling Capability | Drilling Caliber | Drilling Depth |
| 100-400mm | 40-150m |
| Drilling Speed in Soft Stratum | 40-50 m/h |
| Electrical Motor of Rotary Head | 7.5kw |
| Diesel Engine of Tractor | 36HP |
| Power of Generator | 30Kw |
| Sewage Pump | 5.5kw/7.5Kw |
| Speed of Lifting Drill Pipe | 30 m/min |
| Max. Lifting Weight | 1 ton |
| Dimension (L*W*H) | 3400*1350*2200mm |
| Weight | 1800KG |
Machine application
This machine is suitable for the soil, sand, rock, gravel, weathering rock, construction precipitation, geothermal heat, industrial and agricultural water wells, family use well drilling projects and so on.

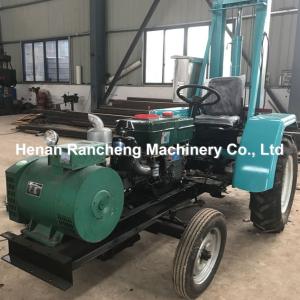

Machine Pictures
