Crawler Type Hydraulic Water Well Drilling Rig For Core Drilling Rig Home Water Well Equipment 150m Depth
Product Description
RCF150C deep water well drilling rig is a product independently developed by our company. Adopting the latest model and advanced hydraulic technology, low consumption, large rotation torque, convenient hole formation, our water well drilling rig is mainly used for resource exploration and drilling of hydrological wells, civil water wells, agricultural irrigation and other projects.
Using high-quality materials and stylish and compact design, the drilling rig is more efficient, has a lower failure rate, is economical and durable, and has a higher comprehensive cost performance. Our water drilling rig has been truly recognized by the market and has received positive feedback from most customers.
Technical Parameters
| Bore diameter(Hammer) | 90-300mm |
| Bore depth | 150m |
| Air consumption | 17-31m³/min |
| Air pressure | 1.7-2.5Mpa |
| Pipe diameter | 76mm/89mm |
| Pipe length | 3m |
| Push force | 4T |
| Lifting force | 12T |
| Lifting speed | 2.5m/min |
| feeding speed | 0.5-5m/min |
| Fast lifting speed | 18m/min |
| Fast feeding speed | 35m/min |
| Max torque of rotary | 3500-3800Nm |
| Rotary speed | 40-65r/min |
| Mud Pump flow | 200L/min (option) |
| Feeding efficiency | 10-35m/h |
| Travel speed | 2.5Km/h |
| Climb ability | 30° |
| Dimension(L*W*H) | 3500×1700×2250MM |
| Weight | 3700kg |
| Diesel engine | 42KW |
Product advantages
1. It consists of three parts: the main engine, the pump station, and the control console.
2. It can be put into production in the original transportation and exploration tunnels, protecting the overall structure of the mine, and can also perform 0-90 degree drilling on the ground.
3. The drilling rig is flexible in layout, and the drill rod is mechanically unscrewed, which reduces the labor intensity of workers and improves work efficiency.
4. It adopts a box-type feed frame, clamps the gripper, rotates the power head to drill, and the oil cylinder pulls and sends out the drilling tool. The bulky drilling rig is eliminated.
Application:
The water well drilling rig is mainly used for resource exploration and drilling of hydrological wells, civil water wells, agricultural irrigation and other projects.

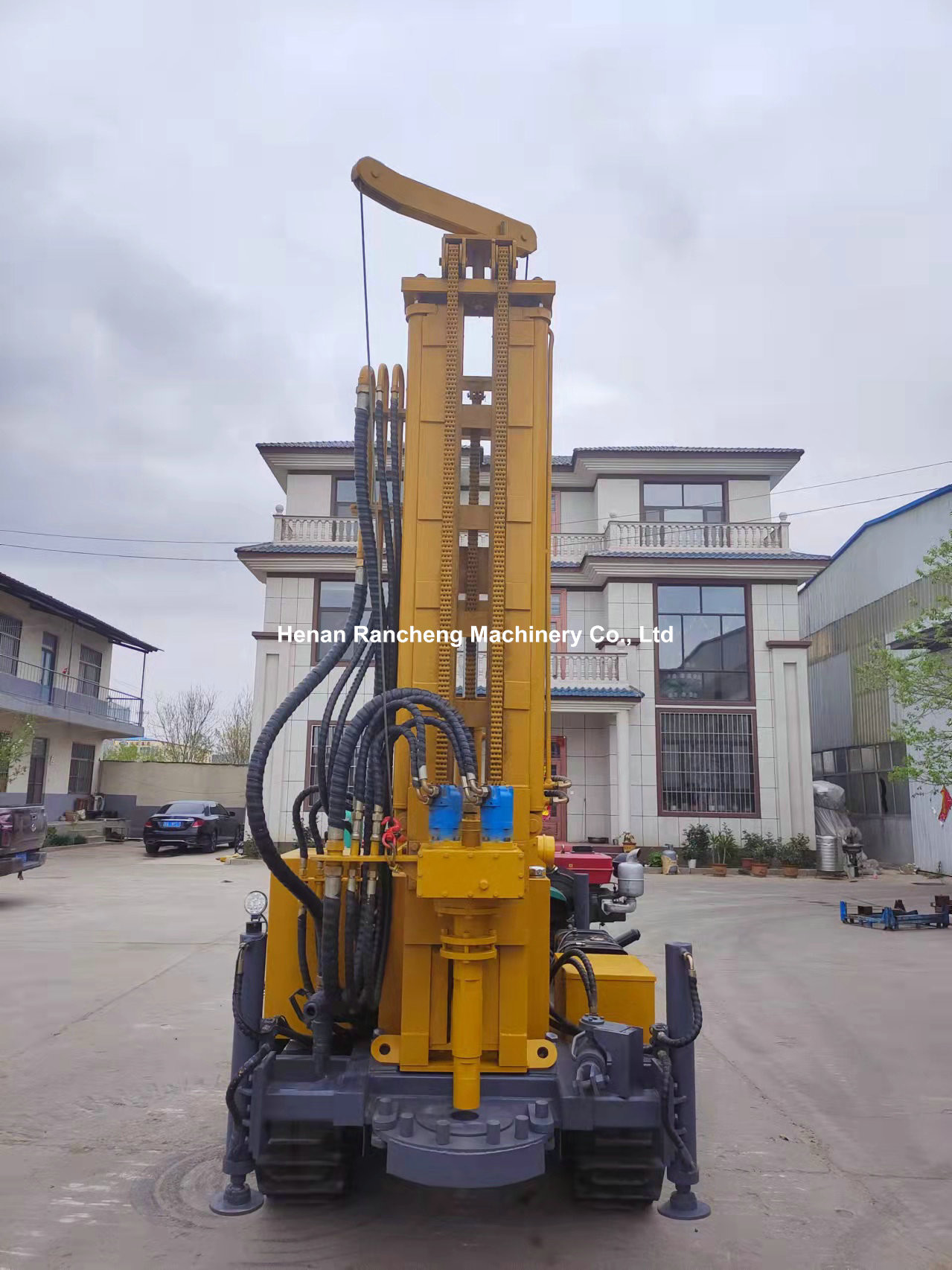

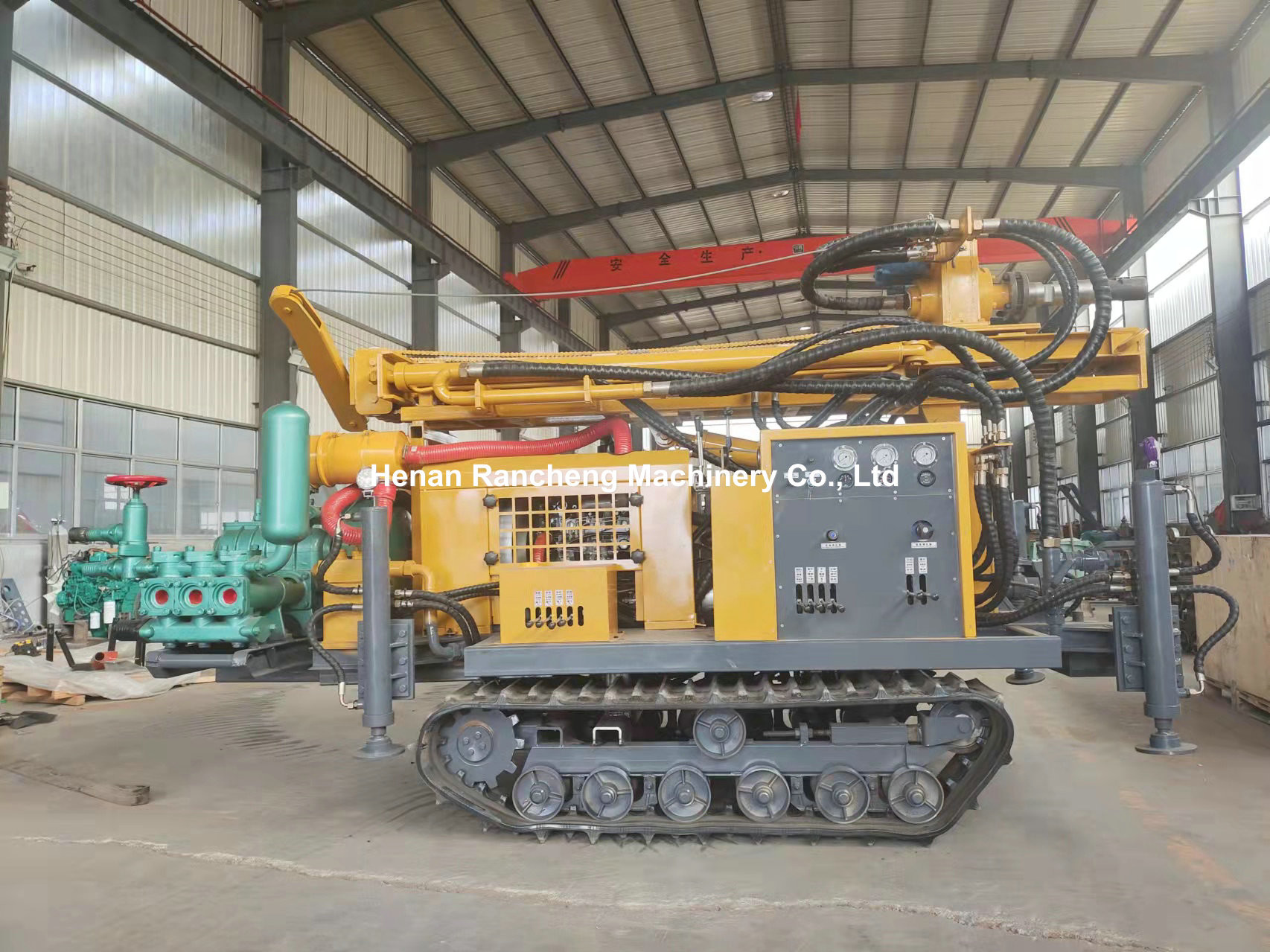

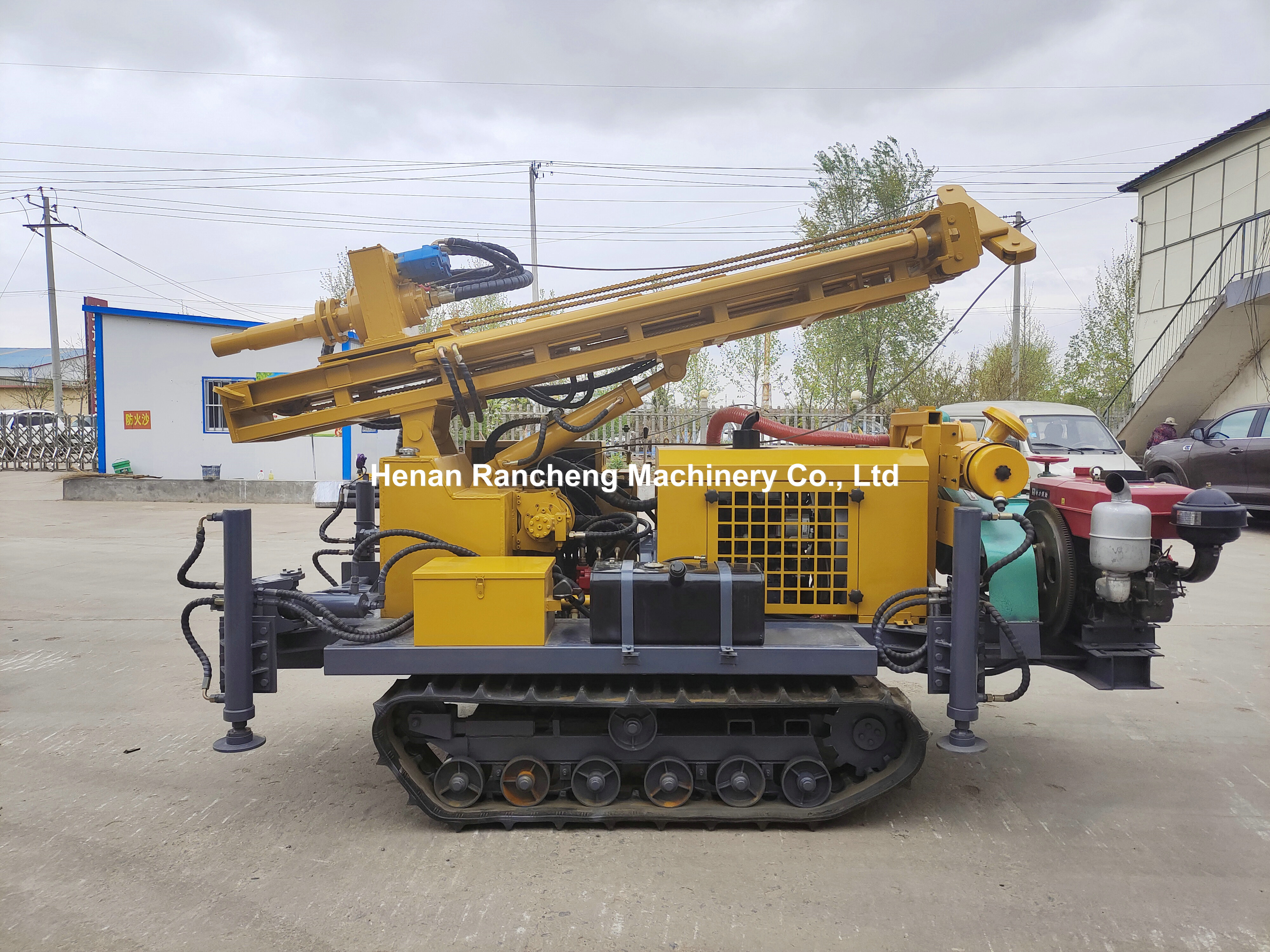

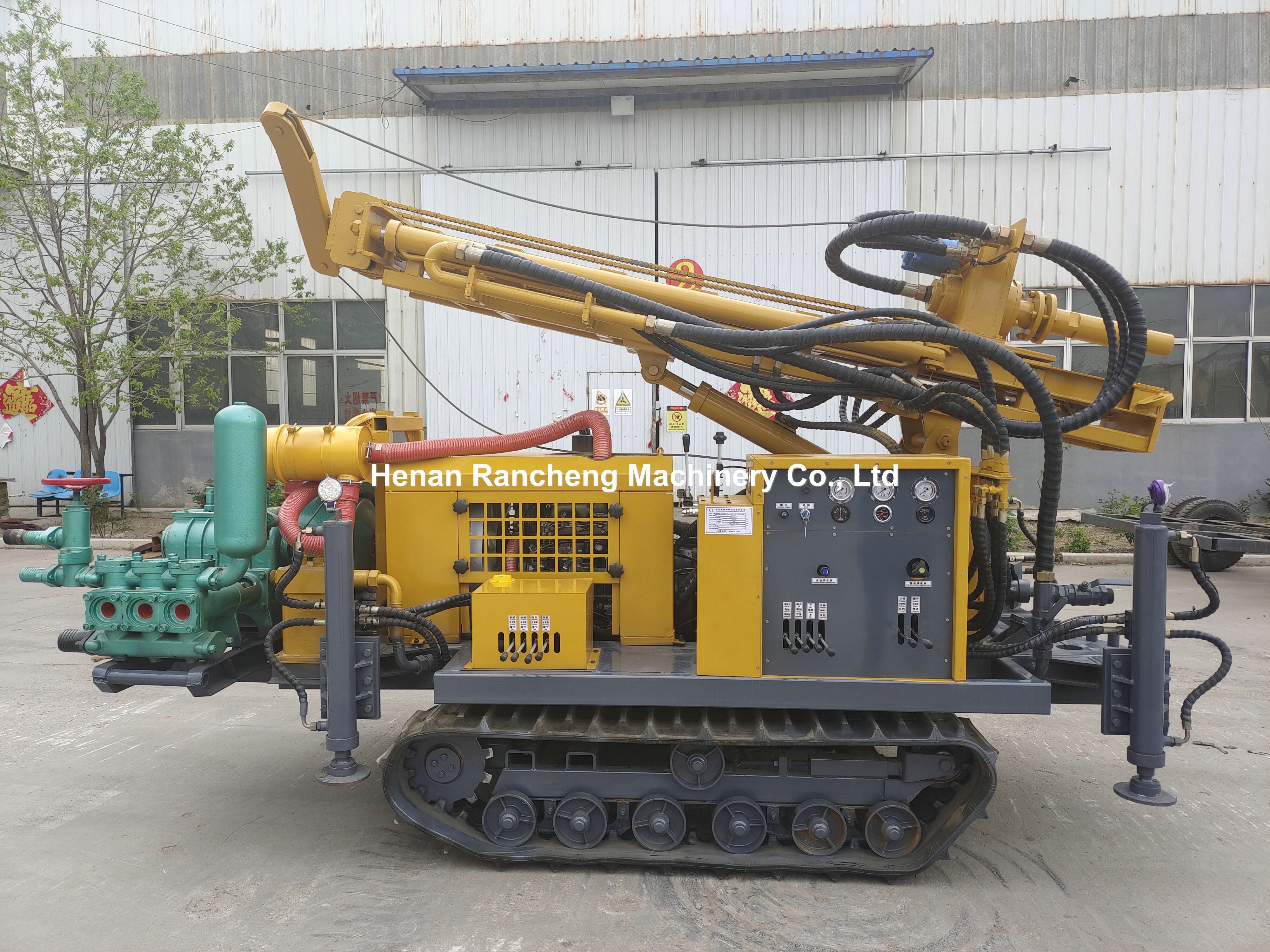

Machine pictures
|
|

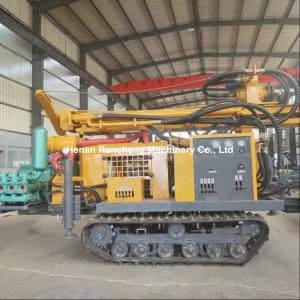

Crawler Type Hydraulic Water Well Drilling Rig For Core Drilling Rig Home Water Well Equipment 150m Depth Images
|
