Full Hydraulic Wheels Type Diesel Water Well Borehole RCS200W Small Drilling Rig Machine For Sale

Name: Full Hydraulic Wheels Type Diesel Water Well Borehole RCS200W Small Drilling Rig Machine For Sale
Brand: RanCheng
Price: 1 USD

Quality Full Hydraulic Wheels Type Diesel Water Well Borehole RCS200W Small Drilling Rig Machine For Sale wholesale

Brand Name : RanCheng

Model Number : RCS200W

Certification : CE, ISO 9001:2000

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 100sets per Month

Delivery Time : 10-15 working days

Packaging Details : Standard shipping

Geology drilled : All kinds

Drill system and operation : Full Hydraulic

Rotation Torque : 4500-5500N.m

Drill pipe length : 2/3m

Drill pipe diameter : 76/89mm

Diesel engine : 78KW Weichai Huadong

Contact Now

Full Hydraulic Wheels Type Diesel Water Well Borehole RCS200W Small Drilling Rig Machine For Sale

Product Description

The RCS200W water well drilling rig is a trailer mounted water well drilling rig. It uses advanced hydraulic technology, is head driven, and is operated with a mud pump and air compressor.

This compact fully hydraulic drilling rig is designed for down-the-hole drilling and rotary drilling up to 200 meters deep. It is lightweight, powerful, and versatile, and can be used for rotary and drilling using air, foam, or mud depending on the conditions.

Technical data

Model	RCS200W
Geology drilled	All kinds
Drill depth	200 m
Drilling Diameter	90 -300mm
Drill system and operation	Hydraulic
For rock	6-20F
Air consumption	17-35m³/min
Air pressure	1.7-3.0Mpa
Rotary head
Rotation Torque	4000-5000N.m
Rotation speed	80-200rpm
Lifting capacity	14000KGS
Pull down capacity	4000KGS
DRILL PIPE
Drill pipe length	2 meter
Drill pipe diameter	60/76/89 mm
MUD PUMP
Flow capacity	160 liter/min
working pressure	1.3MPA
DIMENSIONS
Transport size	230012001700mm
Weight	2300KGS
Diesel engine
Power	45KW Weifang Hengtong

Application

This hydraulic water well drilling rig is widely used in industrial and agricultural water conservancy projects, agricultural irrigation well drilling, domestic water well drilling, geothermal well drilling, well inspection and other exploration drilling.


Full Hydraulic Wheels Type Diesel Water Well Borehole RCS200W Small Drilling Rig Machine For Sale

Product Tags:

Full Hydraulic Wheels Drilling Rig Machine

Small Drilling Rig Machine

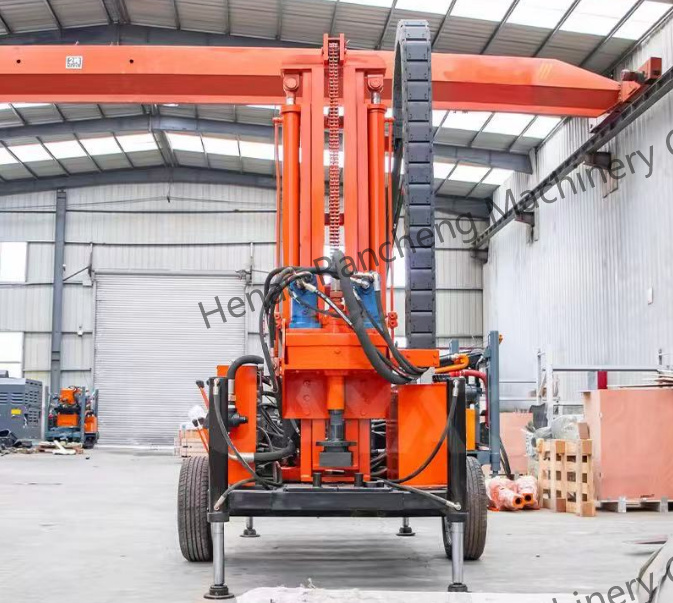

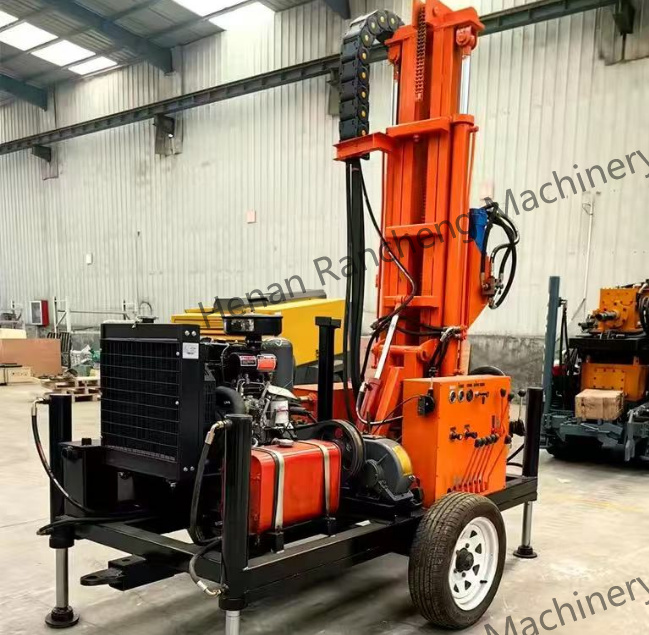

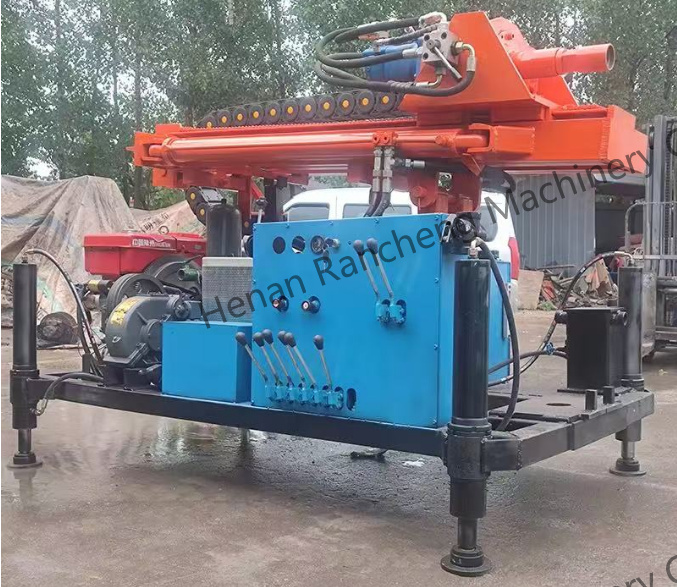

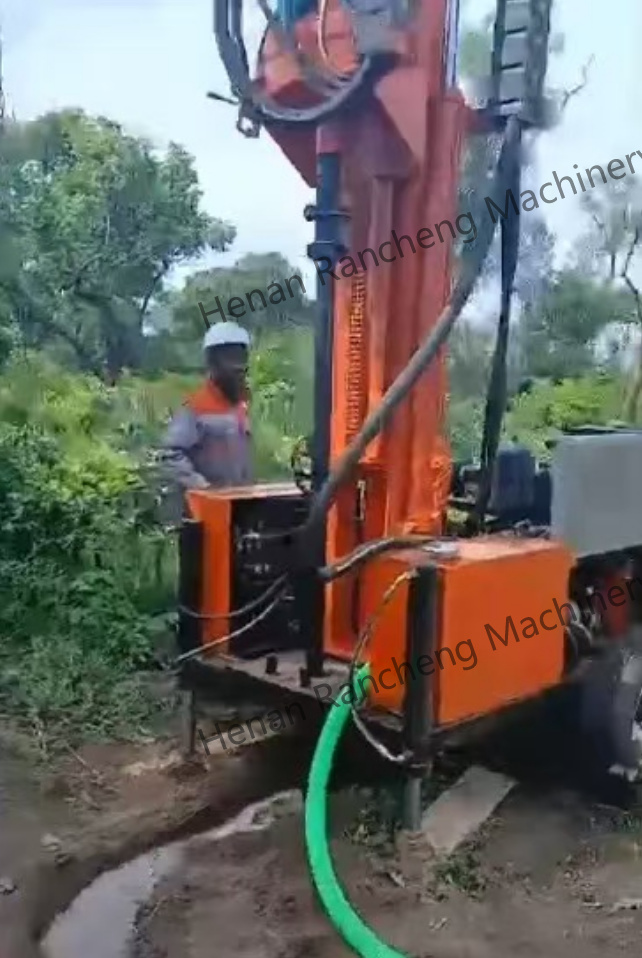

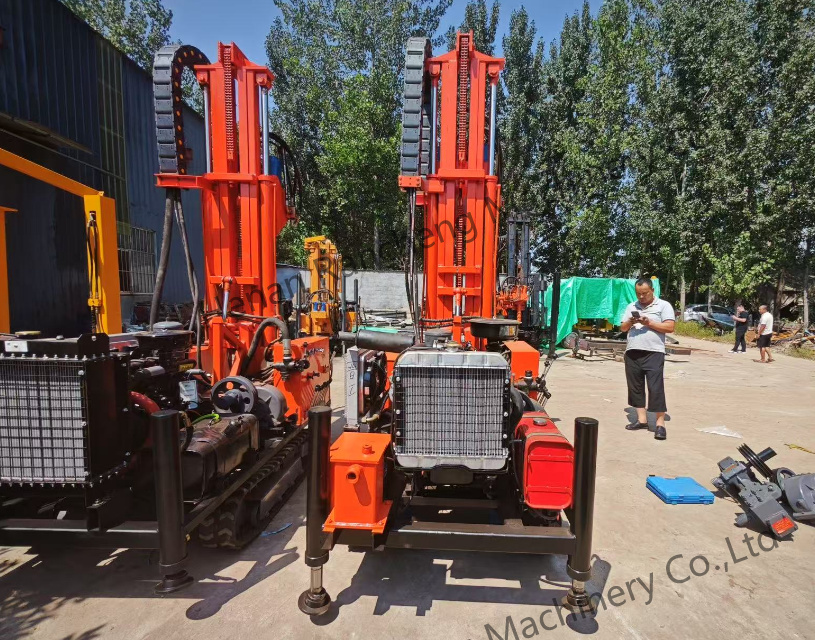

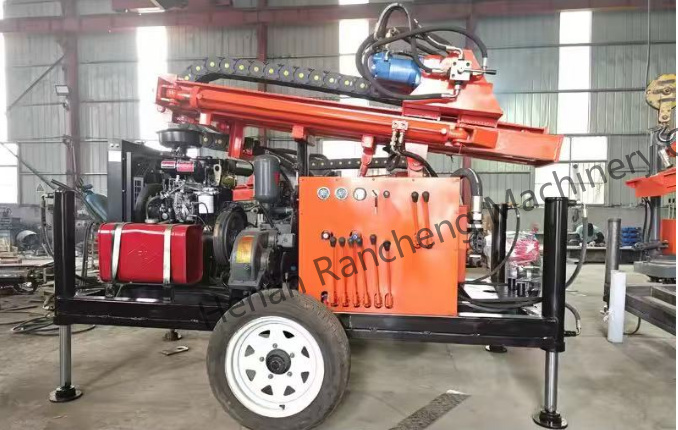

Full Hydraulic Wheels Type Diesel Water Well Borehole RCS200W Small Drilling Rig Machine For Sale Images
