400m Depth Steel Crawler Mounted Water Well Drilling Machine 92KW Yuchai Engine

Name: 400m Depth Steel Crawler Mounted Water Well Drilling Machine 92KW Yuchai Engine
Brand: RanCheng
Price: 1 USD

Quality 400m Depth Steel Crawler Mounted Water Well Drilling Machine 92KW Yuchai Engine wholesale

Brand Name : RanCheng

Model Number : RCF400C

Certification : CE, ISO 9001:2000

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 100sets per Month

Delivery Time : 10-15 working days

Packaging Details : It can be shipped by one 20" container

Name : Water Well Drilling Machine

Model : RCF400C

Drilling Depth : Max 400m

Drilling Dia : 140 - 350mm

Diesel engine : 92KW Yuchai engine

Weight : 9200Kg

Contact Now

400m Depth Steel Crawler Mounted Water Well Drilling Machine 92KW Yuchai Engine

Machine Introduction

Featuring its powerful 92KW Yuchai diesel engine and durable steel crawler travel system, the RCF400C water well drilling machine is able to adapt to a variety of terrains, including hard rock and sandstone, ensuring stability and operability even at the most remote drilling sites. Also capable. Widely used in agriculture, industrial water well drilling, and geothermal energy and mining projects, it not only saves significant time and costs by eliminating the need for excavation, but is also environmentally friendly with no harmful emissions. It is simple and safe to operate and has a variety of safety functions, making it easy for even inexperienced people to get started.

Overall, the RCF400C water well drilling machine is a reliable and efficient drilling machine and is the first choice for all types of drilling projects.

Technical Parameters

Bore diameter(Hammer)	140-350mm
Bore depth	400m
Air consumption	17-36m³/min
Air pressure	1.7-3.5Mpa
Pipe diameter	89mm/102mm
Pipe length	1.5m/2m/3m/6m
Lifting force	22T
Lifting speed	3m/min
feeding speed	0.5-5m/min
Fast lifting speed	20m/min
Fast feeding speed	40m/min
Max torque of rotary	6200-9000Nm
Rotary speed	66-135r/min
Hoist lifting capacity	2T
Mud Pump flow	450L/min (option)
High hydraulic leg	1.4m
Feeding efficiency	15-35m/h
Travel speed	2.5Km/h
Climb ability	30°
Dimension(LWH)	6000×2100×2550mm
Weight	9200Kg
Diesel engine	92KW Yuchai engine
Drilling way	Air compressor drilling or mud pump drilling

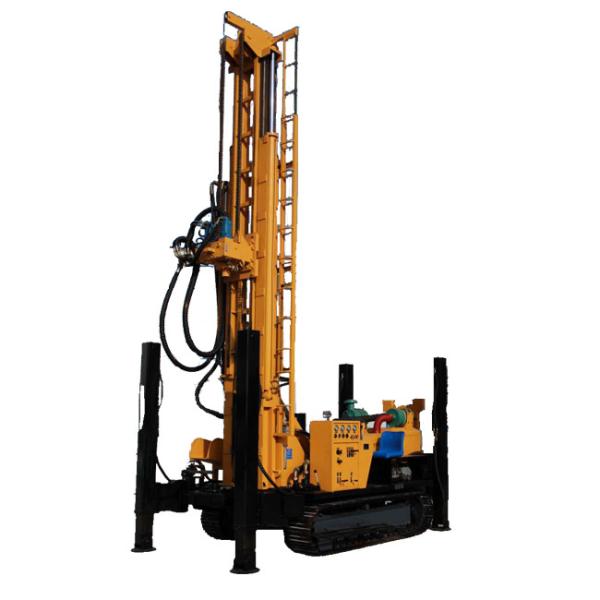

Machine Pictures

400m Depth Steel Crawler Mounted Water Well Drilling Machine 92KW Yuchai Engine
