140mm - 400mm Bore Dia Water Well Drilling Equipment 600m Depth 118KW Yuchai Engine

Name: 140mm 400mm Bore Dia Water Well Drilling Equipment 600m Depth 118KW Yuchai Engine
Brand: RanCheng
Price: 1 USD

Brand Name : RanCheng

Model Number : RCF600C

Certification : CE, ISO 9001:2000

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 100sets per Month

Delivery Time : 10-15 working days

Packaging Details : It can be shipped by one 40" container

Name : Water Well Drilling Machine

Model : RCF600C

Bore depth : 600m

Bore diameter : 140-400mm

Weight : 11500kg

Diesel engine : 118KW Yuchai engine

Contact Now

600m Depth 140 - 400mm Bore Dia Water Well Drilling Machine 118KW Yuchai Engine

Machine Introduction

The RCF600C hydraulic crawler water well drilling machine has powerful functions and diverse application features. Whether it is customized diameter or depth, it shows excellent performance: diameter range from 140 mm to 400 mm, and the maximum drilling depth can reach 600 meters. During operation, it has a wide range of air consumption and working air pressure to meet the needs of a variety of different projects. Flexible drill rod selection and adjustable hydraulic legs further increase its suitability, while strong lifting force and fast feed rates ensure stable operation. At the same time, the body size is moderate and equipped with a reliable 118kw Yuchai engine, which is easy to provide long - lasting power support. The rotation of the drilling method gives it the ability to flexibly adapt to the needs of different projects, whether it is air compressor drilling or mud pump drilling.

Technical Parameters

Bore diameter(Hammer)	140-400mm
Bore depth	600m
Air consumption	17-42m³/min
Air pressure	1.7-3.5Mpa
Pipe diameter	102/108/114mm
Pipe length	1m/2m/3m/6m
Lifting force	26T
Fast lifting speed	20m/min
Fast feeding speed	40m/min
One-time advance length	6.6m
Max torque of rotary	7500-10000Nm
Rotary speed	40-130r/min
Hoist lifting capacity	2T
Mud Pump flow	600L/min or 850L/min (option)
High hydraulic leg	1.7m
Feeding efficiency	15-35m/h
Travel speed	2.5Km/h
Climb ability	30°
Dimension(LWH)	6200×2200×2650mm
Width of loading	2.85m
Weight	11500Kg
Diesel engine	118KW Yuchai engine
Drilling way	Air compressor drilling or mud pump drilling

Our Service

Our services are dedicated to meeting customer needs and providing exceptional support. During the pre - sales stage, we are your technical advisor, assisting in selecting the equipment that best suits your project needs, and providing professional advice and custom design and manufacturing. During the sale stage, we continue to provide all - round support, conduct pre - acceptance, and help solve possible problems. In the after - sales stage, we are committed to providing thoughtful services and have a complete after - sales service system. We dispatch professional engineers for maintenance and provide 24 - hour technical support to ensure the stable operation of the equipment and meet business needs.

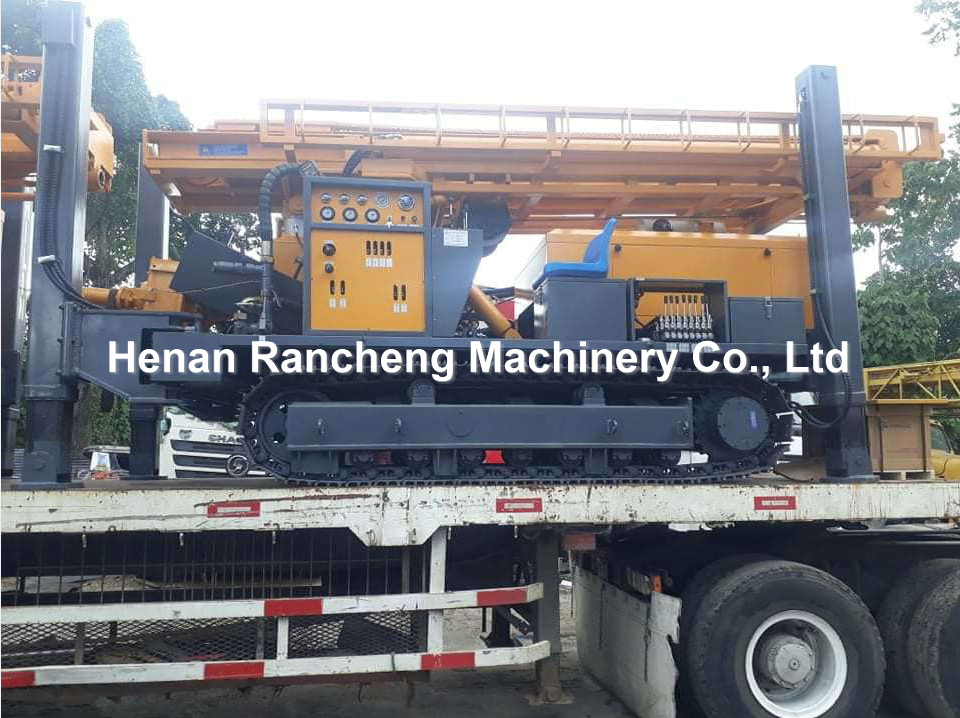

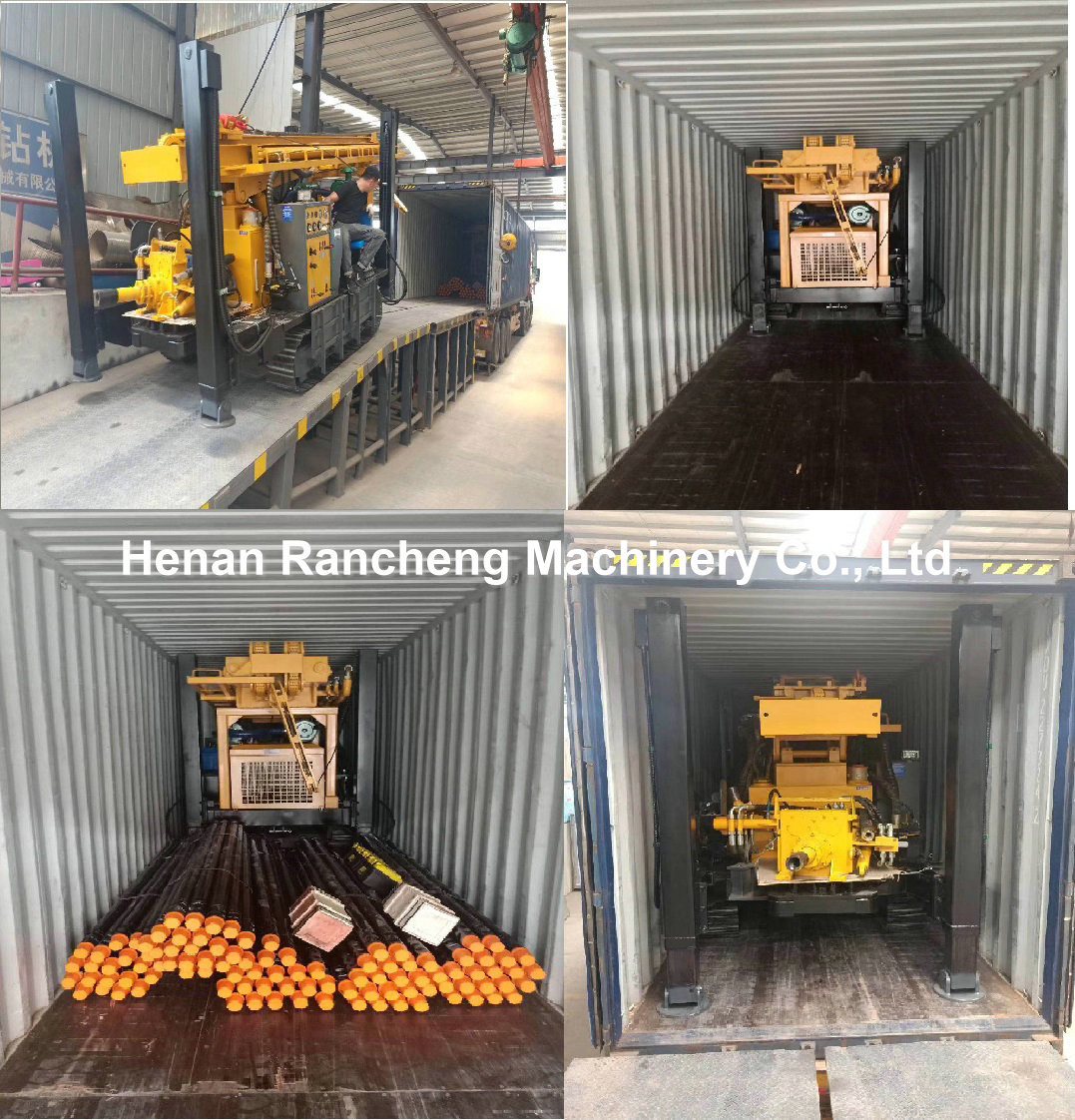

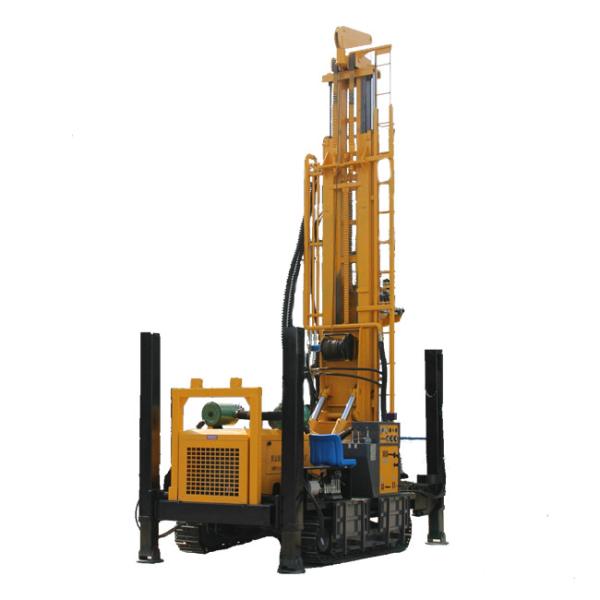

Machine Pictures
